DOOR LOCK-LINK SWITCH INSPECTION

id091400801200

Front

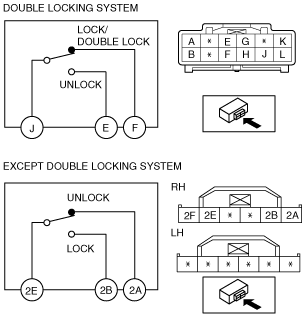

1.  Inspect for continuity between the door lock-link switch terminals.

acxaaw00001204

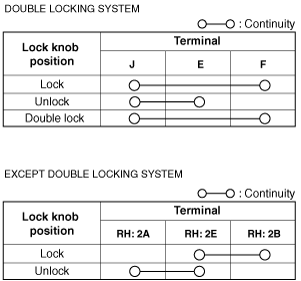

•  If not as specified, replace the front door latch and lock actuator.

acxaaw00001205

Rear

1.  Inspect for continuity between the door lock-link switch terminals.

acxaaw00001206

•  If not as specified, replace the front door latch and lock actuator.

acxaaw00001207
