DASHBOARD DISASSEMBLY/ASSEMBLY

id091700800400

1.  Remove the following parts:

(1)  Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

(2)  Information display (See INFORMATION DISPLAY REMOVAL/INSTALLATION.)

(3)  Front speaker (See FRONT SPEAKER REMOVAL/INSTALLATION.)

(4)  Center speaker (See CENTER SPEAKER REMOVAL/INSTALLATION.)

2.  Disassemble in the order indicated in the table.

3.  Assemble in the reverse order of disassembly.

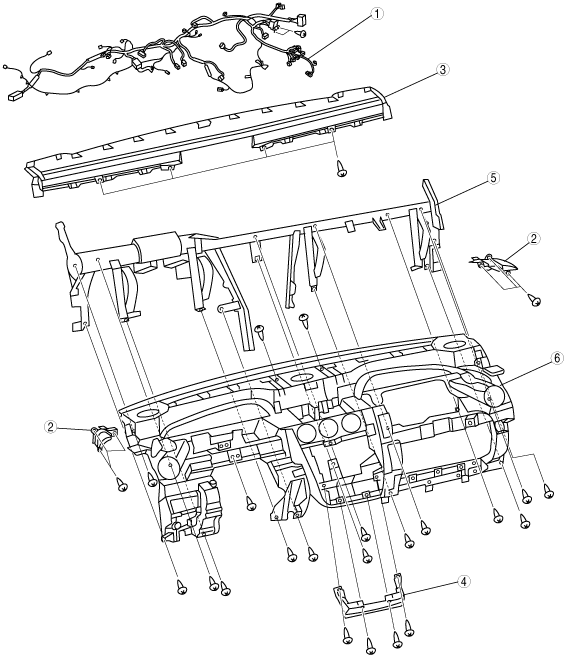

L.H.D.

acxuuw00000650

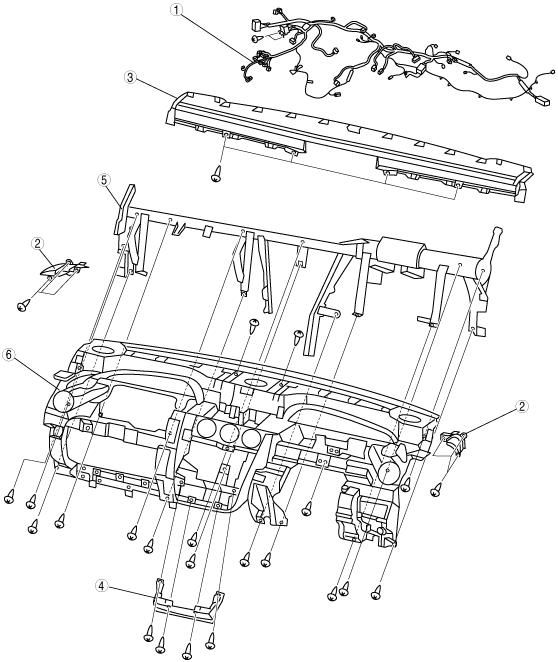

R.H.D.

acxaaw00000094

1	Dashboard wiring harness
2	Demister duct
3	Upper garnish
4	Dashboard center panel
5	Dashboard member
6	Dashboard
