INNER GARNISH REMOVAL/INSTALLATION

id091700801000

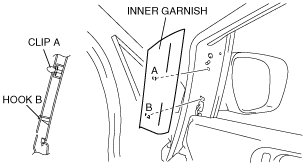

1.  Pull the inner garnish outward and detach clip A.

acxuuw00000875

2.  Remove the hook B.

3.  Remove the inner garnish.

4.  Install in the reverse order of removal.
