TRUNK END TRIM REMOVAL/INSTALLATION

id091700803400

1.  Remove the sub trunk box. (See SUB TRUNK BOX REMOVAL/INSTALLATION)

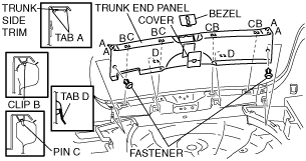

2.  Remove the fasteners.

acxaaw00001549

3.  Pull the trunk end trim upward, then disengage tabs A, clips B and pins C.

4.  Remove the tabs D.

5.  Remove the trunk end trim.

6.  Remove the bezel.

7.  Remove the cover.

8.  Install in the reverse order of removal.
