LIFTGATE LOWER TRIM REMOVAL/INSTALLATION

id091700803800

1.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION)

2.  Remove the liftgate side trim. (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION)

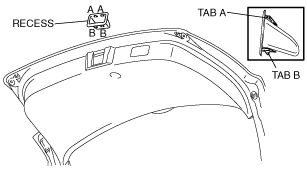

3.  Pull the recess toward you, then remove it.

acxuuw00000870

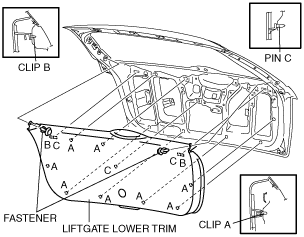

4.  Remove the fasteners.

acxaaw00001552

5.  Pull the liftgate lower trim toward you, then disengage the clips A, B and pins C from the body.

6.  Remove the liftgate lower trim.

7.  Install in the reverse order of removal.
