CONSOLE PANEL REMOVAL/INSTALLATION

id091700804100

1.  Remove clips A in order starting from the vehicle rear using a tape-wrapped flathead screwdriver.

acxaaw00001365

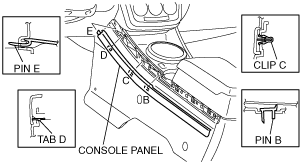

2.  Remove the parts in the order of pin B, clip C and tab D from the vehicle rear.

acxaaw00001366

3.  Remove the pin E.

4.  Remove the console panel.

5.  Install in the reverse order of removal.
