FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY
id091700804200
Driver’s Side
1. Disassemble in the order indicated in the table.
L.H.D.

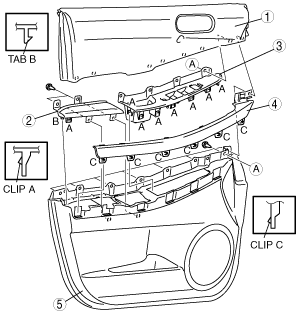

acxuuw00000884
|
R.H.D.

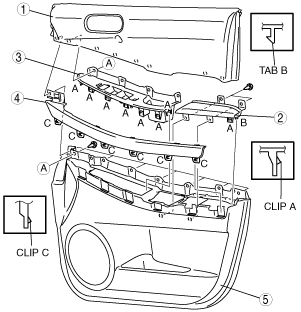

acxaaw00000085
|
|
1
|
Front door trim upper
|
|
2
|
Armrest
|
|
3
|
Switch panel
|
|
4
|
Front door decoration panel
|
|
5
|
Front door trim lower
|
2. Assemble in the reverse order of disassembly.
Passenger’s Side
1. Remove the tab A and B.
L.H.D.
acxuuw00000917
|
R.H.D.
acxaaw00000086
|
2. Remove the bracket.
3. Remove the handle pull.
4. Disassemble in the order indicated in the table.
L.H.D.

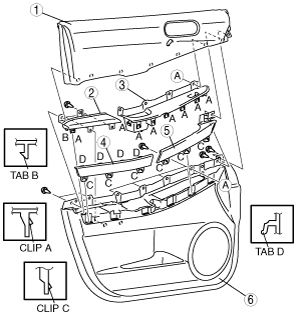

acxuuw00000885
|
R.H.D.
acxaaw00000087
|
|
1
|
Front door trim upper
|
|
2
|
Armrest
|
|
3
|
Switch panel
|
|
4
|
Front door decoration panel No.1
|
|
5
|
Front door decoration panel No.2
|
|
6
|
Front door trim lower
|
5. Assemble in the reverse order of disassembly.
