WASHER TANK REMOVAL/INSTALLATION
id091900801700
1. Disconnect the negative battery cable.
2. Remove the mudguard (RH).
3. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

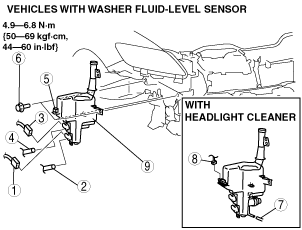

4. Remove in the order indicated in the table.
acxaaw00001174
|
|
1
|
Windshield washer motor connector
|
|
2
|
Windshield washer hose
|
|
3
|
Rear washer motor connector
|
|
4
|
Rear washer hose
|
|
5
|
Washer fluid-level sensor connector
|
|
6
|
Bolt
|
|
7
|
Headlight cleaner hose (With headlight cleaner)
|
|
8
|
Headlight cleaner relay connector (With headlight cleaner)
|
|
9
|
Washer tank
|
acxuuw00001829
|
|
1
|
Windshield washer motor connector
|
|
2
|
Windshield washer hose
|
|
3
|
Rear washer motor connector
|
|
4
|
Rear washer hose
|
|
5
|
Bolt
|
|
6
|
Washer tank
|
5. Install in the reverse order of removal.
