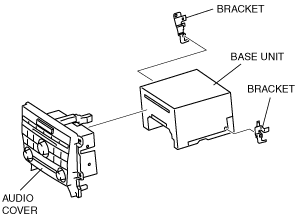

• The audio unit is composed of the audio cover and the base unit.
acxaan00000384
|
AUDIO UNIT CONSTRUCTION/OPERATION
id092000101600
Structural View
Standard specification type
acxaan00000384
|
Terminal layout and signal
|
Terminal |
Signal |
|
|---|---|---|
 |
1A
|
Left front door speaker (+)
|
|
1B
|
B+ (Power back up)
|
|
|
1C
|
Left front door speaker (–)
|
|
|
1D
|
Right front door speaker (+)
|
|
|
1E
|
Illumination (+)
|
|
|
1F
|
Right front door speaker (–)
|
|
|
1G
|
Illumination (–)
|
|
|
1H
|
Antenna
|
|
|
1I
|
—
|
|
|
1J
|
AMP control*
|
|
|
1K
|
—
|
|
|
1L
|
—
|
|
|
1M
|
—
|
|
|
1N
|
Audio control switch 1
|
|
|
1O
|
CAN (+)
|
|
|
1P
|
Audio control switch 2
|
|
|
1Q
|
CAN (–)
|
|
|
1R
|
ACC
|
|
|
1S
|
Left rear speaker (+)
|
|
|
1T
|
Audiopilot*
|
|
|
1U
|
Left rear speaker (–)
|
|
|
1V
|
Right rear speaker (+)
|
|
|
1W
|
Power ground
|
|
|
1X
|
Right rear speaker (–)
|
|
 |
2A
|
Power ground
|
|
2B
|
—
|
|
|
2C
|
Input signal RH (+)
|
|
|
2D
|
Input signal RH (-)
|
|
|
2E
|
Input signal LH (+)
|
|
|
2F
|
Input signal LH (-)
|
|
|
2G
|
Signal ground
|
|
|
2H
|
TEXT DATA
|
|
|
2I
|
TEXT CLK
|
|
|
2J
|
—
|
|
|
2K
|
BUS (-)
|
|
|
2L
|
BUS (+)
|
|
|
2M
|
RES/AUX CONT
|
|
|
2N
|
—
|
|
|
2O
|
ACC
|
|
|
2P
|
B+
|
|
Touch panel type
acxaan00000444
|
Terminal layout and signal
|
Terminal |
Signal |
|
|---|---|---|
|
1A
|
Left front door speaker (+)
|
|
1B
|
B+ (Power back up)
|
|
|
1C
|
Left front door speaker (–)
|
|
|
1D
|
Right front door speaker (+)
|
|
|
1E
|
Illumination (+)
|
|
|
1F
|
Right front door speaker (–)
|
|
|
1G
|
Illumination (–)
|
|
|
1H
|
Antenna
|
|
|
1I
|
—
|
|
|
1J
|
AMP control*
|
|
|
1K
|
Parking brake signal
|
|
|
1L
|
—
|
|
|
1M
|
R range signal
|
|
|
1N
|
Audio control switch 1
|
|
|
1O
|
CAN (+)
|
|
|
1P
|
Audio control switch 2
|
|
|
1Q
|
CAN (–)
|
|
|
1R
|
ACC
|
|
|
1S
|
Left rear speaker (+)
|
|
|
1T
|
Audiopilot*
|
|
|
1U
|
Left rear speaker (–)
|
|
|
1V
|
Right rear speaker (+)
|
|
|
1W
|
Power ground
|
|
|
1X
|
Right rear speaker (–)
|
|
|
2A
|
Power ground
|
|
2B
|
—
|
|
|
2C
|
Input signal RH (+)
|
|
|
2D
|
Input signal RH (-)
|
|
|
2E
|
Input signal LH (+)
|
|
|
2F
|
Input signal LH (-)
|
|
|
2G
|
Signal ground
|
|
|
2H
|
TEXT DATA
|
|
|
2I
|
TEXT CLK
|
|
|
2J
|
—
|
|
|
2K
|
BUS (-)
|
|
|
2L
|
BUS (+)
|
|
|
2M
|
RES/AUX CONT
|
|
|
2N
|
—
|
|
|
2O
|
ACC
|
|
|
2P
|
B+
|
|
 |
3A
|
B+
|
|
3B
|
Power ground
|
|
|
3C
|
Camera in
|
|
|
3D
|
Video ground
|
|

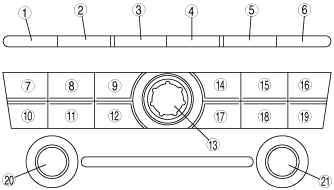

Button Location
Standard specification type
European (L.H.D. U.K.), General (R.H.D.) specs.
acxuun00000363
|
|
1
|
CLOCK button
|
|
2
|
INFO button
|
|
3
|
FM 1/2 button
|
|
4
|
AM button
|
|
5
|
CD button
|
|
6
|
MEDIA button
|
|
7
|
TRACK/SEEK/APC button (up)
|
|
8
|
TA button
|
|
9
|
PTY button
|
|
10
|
TRACK/SEEK/APC button (down)
|
|
11
|
PROG button
|
|
12
|
AF button
|
|
13
|
POWER/VOLUME button
|
|
14
|
Preset button “1”/RPT button
|
|
15
|
Preset button “2”/RDM button
|
|
16
|
Preset button “3”/DISC/Folder button (up)
|
|
17
|
Preset button “4”/Reverse button
|
|
18
|
Preset button “5”/Fast-forward button
|
|
19
|
Preset button “6”/DISC/Folder button (down)
|
|
20
|
TUNE/AUTO-M button
|
|
21
|
AUDIO CONT button
|
Australian specs.
acxuun00000363
|
|
1
|
CLOCK button
|
|
2
|
INFO button
|
|
3
|
FM 1/2 button
|
|
4
|
AM button
|
|
5
|
CD button
|
|
6
|
MEDIA button
|
|
7
|
Preset button “1”/DISC button (up)
|
|
8
|
Preset button “2”
|
|
9
|
Preset button “3”
|
|
10
|
Preset button “4”/DISC button (down)
|
|
11
|
Preset button “5”/Reverse button
|
|
12
|
Preset button “6”/Fast-forward button
|
|
13
|
POWER/VOLUME button
|
|
14
|
RPT button
|
|
15
|
SCAN button
|
|
16
|
TRACK/SEEK/APC button (up)
|
|
17
|
RDM button
|
|
18
|
PROG button
|
|
19
|
TRACK/SEEK/APC button (down)
|
|
20
|
AUDIO CONT button
|
|
21
|
TUNE/AUTO-M button
|

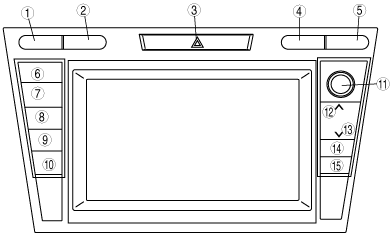

Touch panel type
acxuun00000452
|
|
1
|
FM 1/2 button
|
|
2
|
AM button
|
|
3
|
Hazard warning light switch
|
|
4
|
CD button
|
|
5
|
MEDIA button
|
|
6
|
LOAD/EJECT button
|
|
7
|
INFO button
|
|
8
|
CLOCK button
|
|
9
|
H button
|
|
10
|
M button
|
|
11
|
POWER/VOLUME button
|
|
12
|
TUNE/SEEK/TRACK button (up)
|
|
13
|
TUNE/SEEK/TRACK button (down)
|
|
14
|
SCAN button
|
|
15
|
DISP button
|
