SEAT BELT WARNING ALARM CONSTRUCTION/OPERATION [Australian specs.]

id0922001018z7

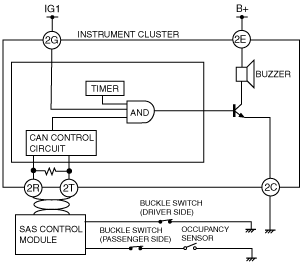

System Wiring Diagram

acxaan00000243

Operation

• The buzzer in the instrument cluster sounds for 33 s when all the following two conditions are met:

― The seat belt (driver-side or passenger-side) is unfastened (driver-side: buckle switch is on, passenger-side: buckle switch is on and occupancy sensor is on).

― The vehicle speed is 20 km/h {12.4 mph} or more.
