FRONT SIDE FRAME COMPONENT REMOVAL [PANEL REPLACEMENT]

id098008741900

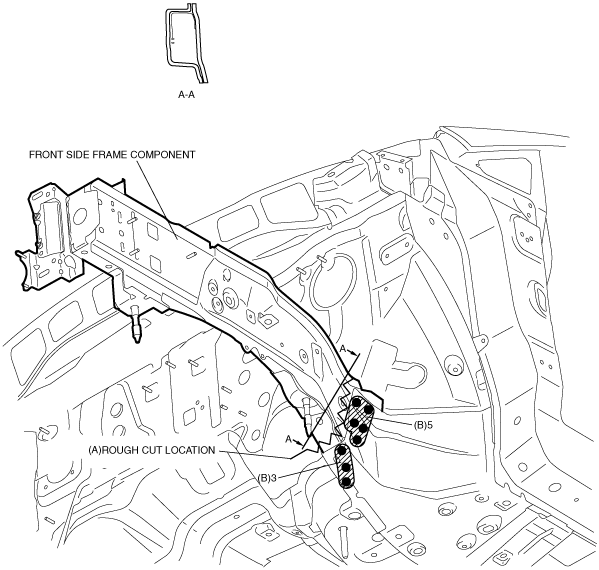

1.  Rough cut area (A), drill the 14 locations indicated by (B).

acxuub00000090

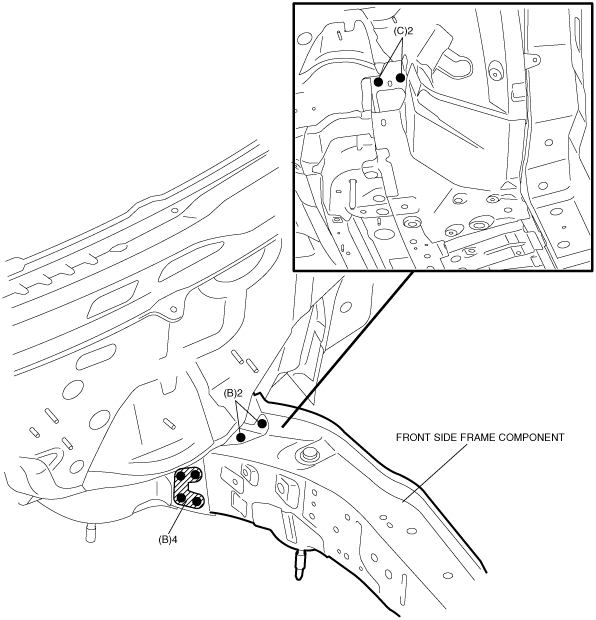

2.  Drill the 2 locations indicated by (C), and remove the front side frame component.

Note

•   The 2 weld locations indicated by (C) cannot be seen from the interior.

acxuub00000091
