REAR FLOOR PAN REMOVAL [PANEL REPLACEMENT]

id098008742700

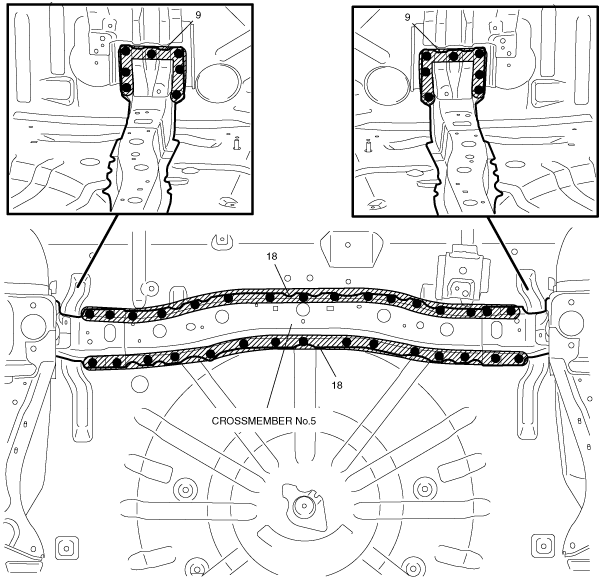

1.  Remove the crossmember No.5.

acxuub00000139

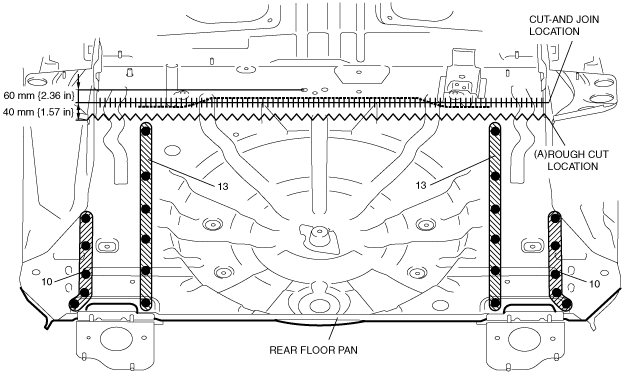

2.  Rough cut area (A).

Caution

•  During rough cutting, be careful not to damage the crossmember No.4 indicated by dotted lines in the figure.

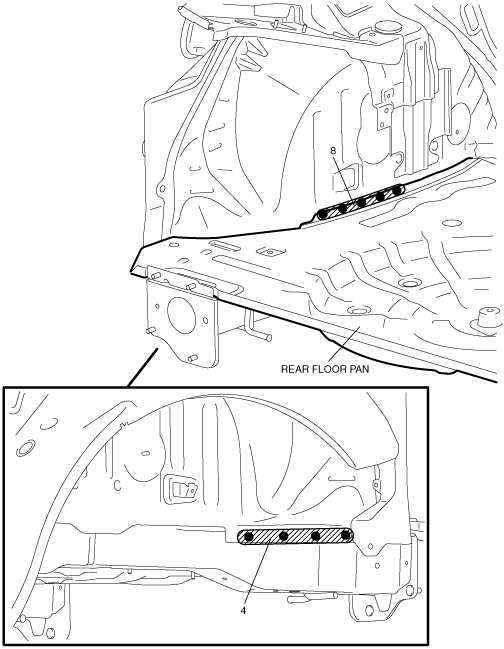

3.  Drill the remaining locations, then remove the rear floor pan.
