SIDE SILL PANEL REMOVAL [PANEL REPLACEMENT]

id098008743700

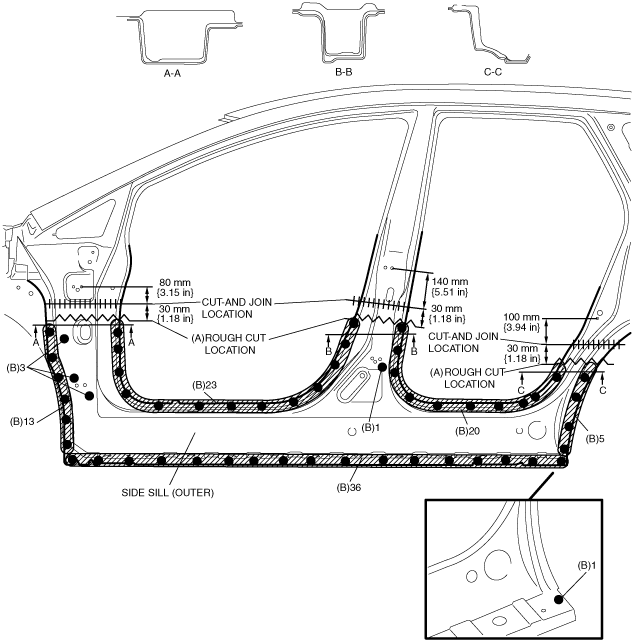

1.  Rough cut area (A), drill the 102 locations indicated by (B), and then remove the side sill (outer).

acxaab00000052

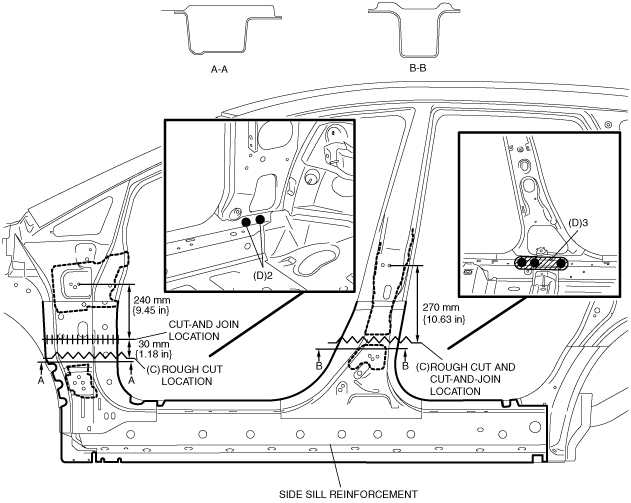

2.  Rough cut area (C).

Caution

•  During rough cutting, be careful not to damage the hinge reinforcement and the center pillar reinforcement (inner) indicated by dotted lines in the figure.

3.  Drill the 5 locations indicated by (D) from the interior.

4.  Remove the side sill reinforcement.

acxaab00000053
