REAR FENDER PANEL REMOVAL [PANEL REPLACEMENT]

id098008744900

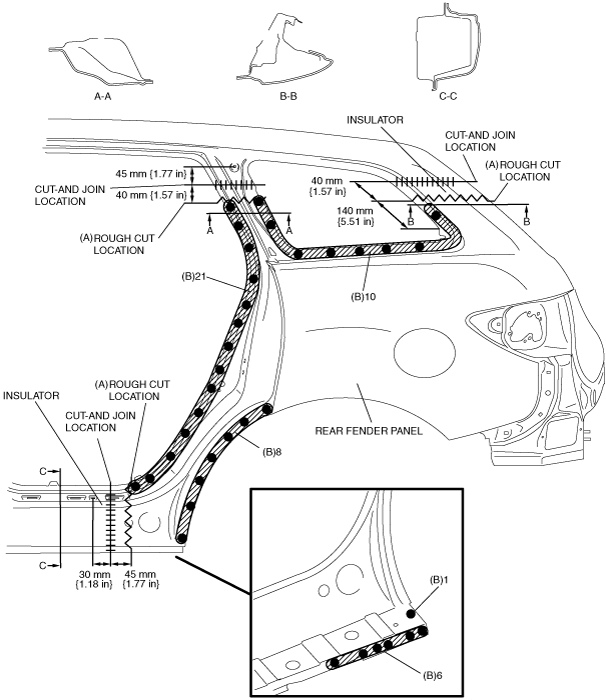

1.  Rough cut area (A), drill the 74 locations indicated by (B).

Caution

•  Avoid cutting with a blow torch or similar tools as the insulator (shaded area) is flammable.

2.  The rear fender panel and the rear pillar (inner) are joined with spot weld sealer at the tire arch line. Use a spatula to separate the rear fender panel from the rear pillar (inner), then remove the rear fender panel.

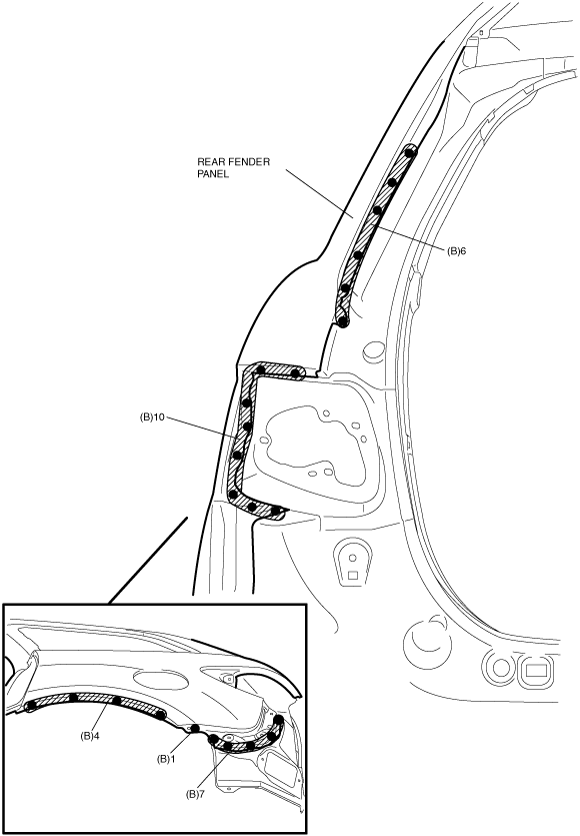

3.  Remove the rear fender panel.

acxaab00000056

acxaab00000077

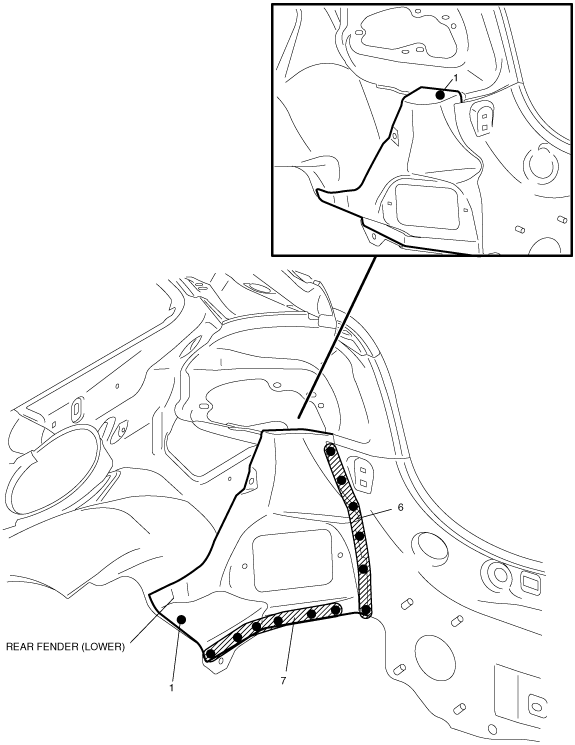

4.  Remove the rear fender panel (lower).

acxaab00000083
