REAR PILLAR (OUTER) REMOVAL [PANEL REPLACEMENT]

id098008747200

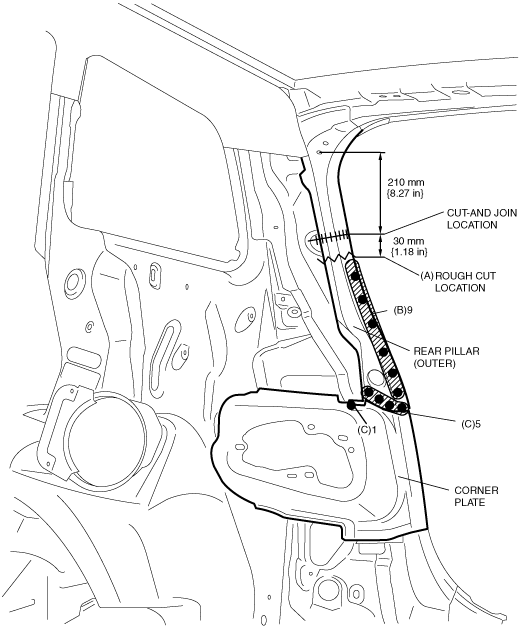

1.  Rough cut area (A), drill the 9 locations indicated by (B).

Note

•  When removing the rear pillar (outer) and corner plate separately, drill the 6 locations indicated by (C).

acxaab00000058

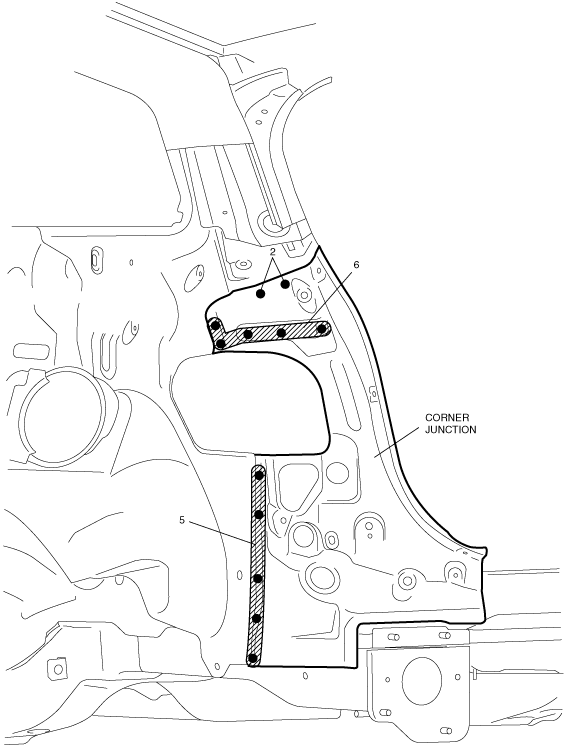

2.  Rough cut area (D), drill the 13 locations indicated by (E).

acxaab00000059

3.  Remove the corner junction.

acxuub00000125
