REAR PILLAR (OUTER) INSTALLATION [PANEL REPLACEMENT]

id098008747300

1.  When joining and cutting the new and existing parts, trial fit the new part in position, then measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for plug welds before installing new parts.

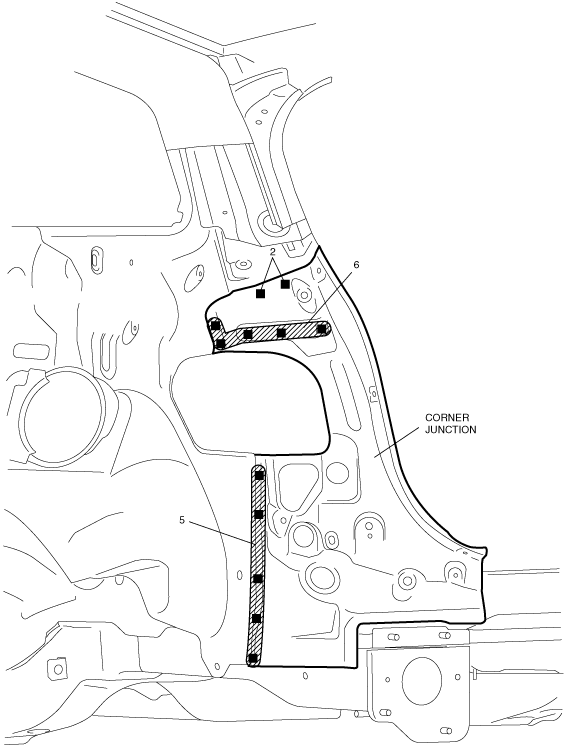

3.  Install the corner junction.

acxuub00000126

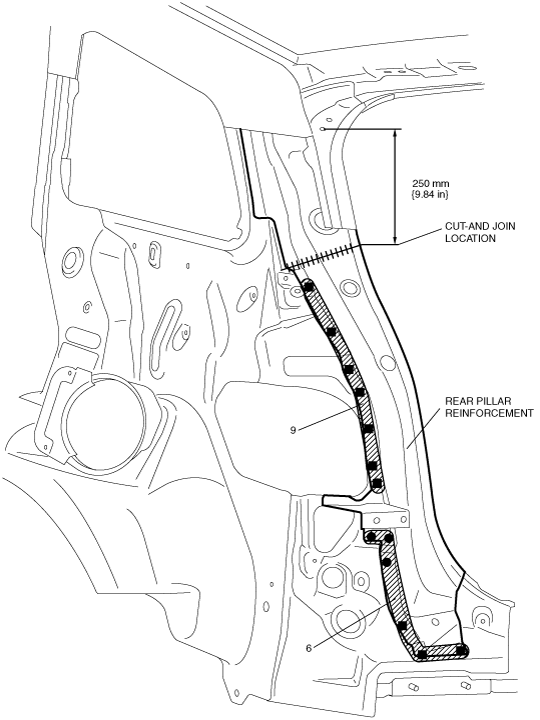

4.  Install the rear pillar reinforcement.

acxaab00000060

5.  After temporarily installing new parts, make sure the related parts fit properly.

6.  Install the rear pillar (outer).

Note

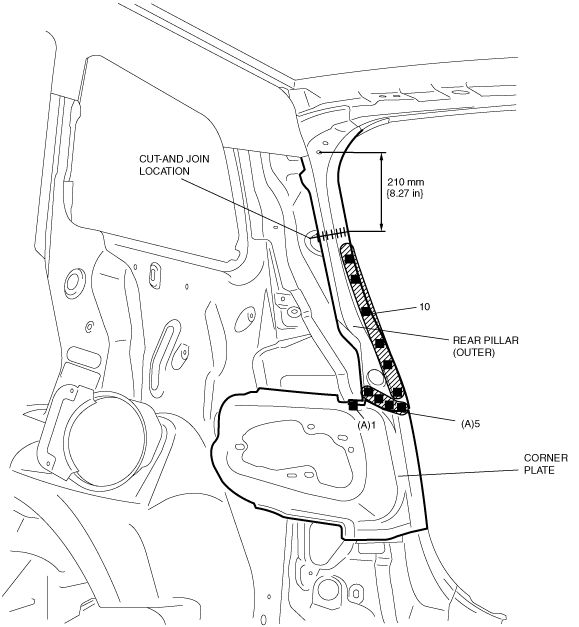

•  When replacing the rear pillar (outer) and corner plate separately, weld the 6 locations indicated by (A).

acxaab00000061
