UNDERBODY FLAT-PLANE DIMENSIONS [DIMENSIONS]

id098010740400

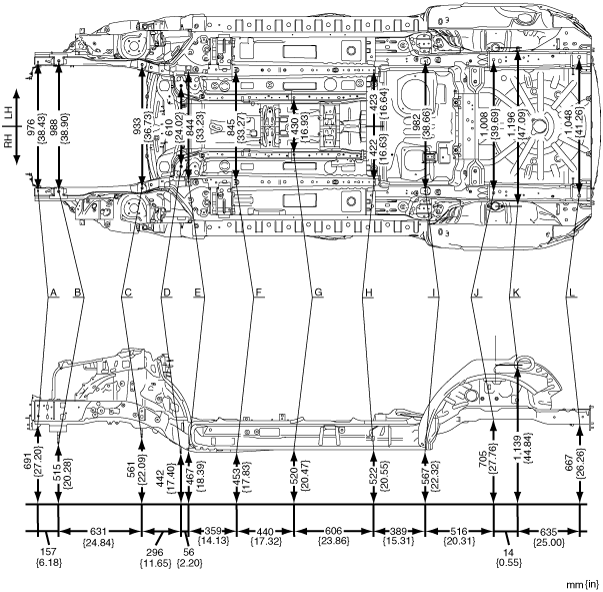

• The following figures are bottom and side views.

acxaab00000091

Point symbol

Designation

Hole diameter or bolt or nut size (mm {in})

A

Front side frame datum hole

φ14 {0.55}

B

Front suspension mounting bolt

M14 {0.55}

C

Front suspension mounting bolt

M14 {0.55}

D

Front suspension mounting bolt

M14 {0.55}

E

Torque box datum hole

φ16.5 {0.65}

F

Front B frame datum hole

φ16 {0.63}

G

Tunnel reinforcement datum hole

φ16 {0.63}

H

Front B frame datum hole

φ12 {0.47}

I

Rear side frame datum hole

φ16 {0.63}

J

Rear side frame datum hole

φ20 {0.79}

K

Rear suspension mounting block

φ55.6 {2.19}

L

Rear side frame datum hole

φ25 {0.98}

Point symbol	Designation	Hole diameter or bolt or nut size (mm {in})
A	Front side frame datum hole	φ14 {0.55}
B	Front suspension mounting bolt	M14 {0.55}
C	Front suspension mounting bolt	M14 {0.55}
D	Front suspension mounting bolt	M14 {0.55}
E	Torque box datum hole	φ16.5 {0.65}
F	Front B frame datum hole	φ16 {0.63}
G	Tunnel reinforcement datum hole	φ16 {0.63}
H	Front B frame datum hole	φ12 {0.47}
I	Rear side frame datum hole	φ16 {0.63}
J	Rear side frame datum hole	φ20 {0.79}
K	Rear suspension mounting block	φ55.6 {2.19}
L	Rear side frame datum hole	φ25 {0.98}
