FRONT BODY STRAIGHT-LINE DIMENSIONS (2) [DIMENSIONS]

id098010740700

acxaab00000015

acxuub00000007

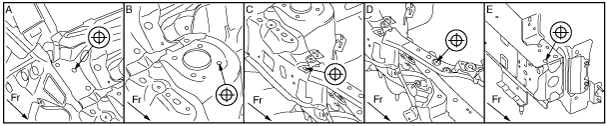

Point symbol

Designation

Hole diameter or bolt or nut size (mm {in})

A

Hood hinge installation hole

φ14 {0.55}

B

Suspension housing upper datum hole

φ11 {0.43}

C

Apron reinforcement upper datum hole

φ12 {0.47}

D

Shroud side member datum hole

φ7 {0.28}

E

Front side frame datum hole

φ14 {0.55}

Point symbol	Designation	Hole diameter or bolt or nut size (mm {in})
A	Hood hinge installation hole	φ14 {0.55}
B	Suspension housing upper datum hole	φ11 {0.43}
C	Apron reinforcement upper datum hole	φ12 {0.47}
D	Shroud side member datum hole	φ7 {0.28}
E	Front side frame datum hole	φ14 {0.55}
