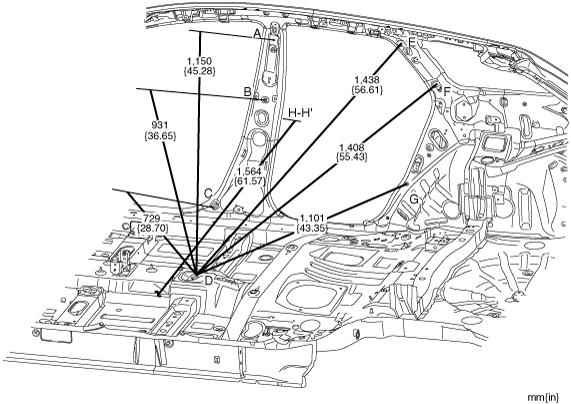

ROOM STRAIGHT-LINE DIMENSIONS (2) [DIMENSIONS]

id098010743400

acxaab00000019

acxuub00000013

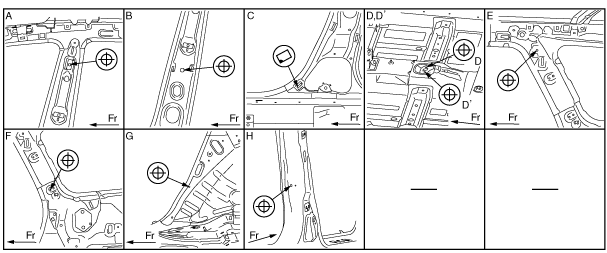

Point symbol

Designation

Hole diameter or bolt or nut size (mm {in})

A

Center pillar inner datum hole

φ16 {0.63}

B

Center pillar inner datum hole

φ10 {0.39}

C

Center pillar inner square hole

26 × 6

{1.02 × 0.24}

D,D’

Parking brake bracket datum hole

φ12 {0.47}

E

Rear pillar inner datum hole

φ7 {0.28}

F

Rear pillar inner datum hole

φ5 {0.20}

G

Rear pillar inner datum hole

φ7 {0.28}

H

Rear door checker bracket installation hole

φ12 {0.47}

Point symbol	Designation	Hole diameter or bolt or nut size (mm {in})
A	Center pillar inner datum hole	φ16 {0.63}
B	Center pillar inner datum hole	φ10 {0.39}
C	Center pillar inner square hole	26 × 6 {1.02 × 0.24}
D,D’	Parking brake bracket datum hole	φ12 {0.47}
E	Rear pillar inner datum hole	φ7 {0.28}
F	Rear pillar inner datum hole	φ5 {0.20}
G	Rear pillar inner datum hole	φ7 {0.28}
H	Rear door checker bracket installation hole	φ12 {0.47}
