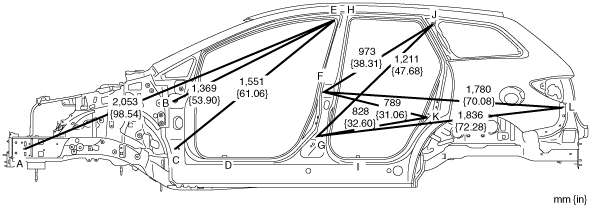

CABIN SIDE FRAME STRAIGHT-LINE DIMENSIONS [DIMENSIONS]
id098010743600
acxaab00000017
|
acxaab00000023
|
acxuub00000030
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|

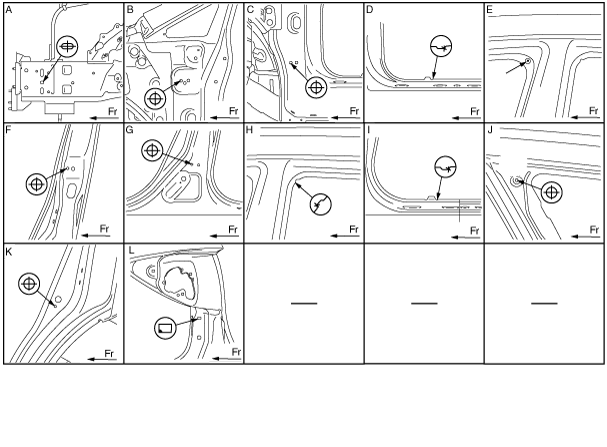

A
|
Front side frame outer datum slot
|
12 × 18
{0.47 × 0.71}
|
|
B
|
Front door hinge installation hole
|
φ12 {0.47}
|
|
C
|
Front door hinge installation hole
|
φ12 {0.47}
|
|
D
|
Side frame outer notch
|
-
|
|
E
|
Side frame outer projection location
|
-
|
|
F
|
Rear door hinge installation hole
|
φ12 {0.47}
|
|
G
|
Rear door hinge installation hole
|
φ12 {0.47}
|
|
H
|
Side frame outer notch
|
-
|
|
I
|
Side frame outer notch
|
-
|
|
J
|
Side frame outer datum hole
|
φ8.2 {0.32}
|
|
K
|
Rear door switch installation hole
|
φ4.5 {0.18}
|
|
L
|
Front side frame outer square hole
|
8 × 6.1
{0.31 × 0.24}
|
