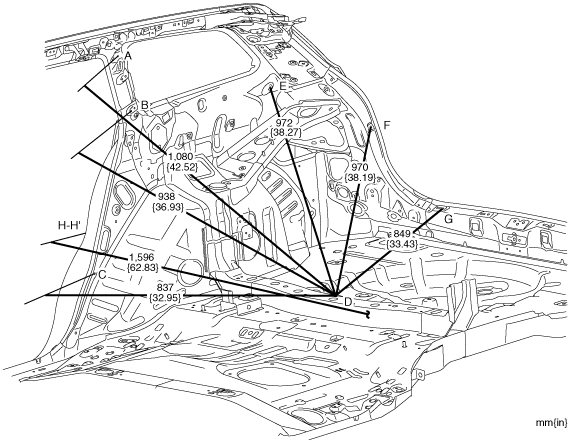

ROOM STRAIGHT-LINE DIMENSIONS (3) [DIMENSIONS]

id098010746200

acxaab00000020

acxuub00000015

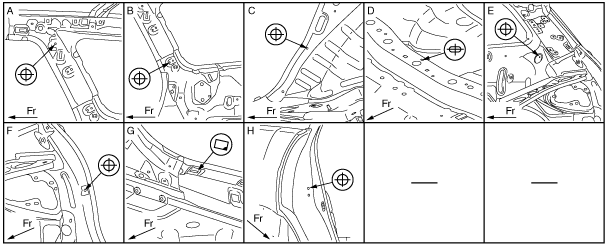

Point symbol

Designation

Hole diameter or bolt or nut size (mm {in})

A

Rear pillar inner datum hole

φ7 {0.28}

B

Rear pillar inner datum hole

φ5 {0.20}

C

Rear pillar inner datum hole

φ7 {0.28}

D

Crossmember No.5 datum slot

7.2 × 10

{0.28 × 0.39}

E

Rear pillar inner datum hole

φ6 {0.24}

F

Corner junction datum hole

φ8.6 {0.34}

G

Rear end member square hole

28 × 8

{1.10 × 0.31}

H

Rear door striker installation hole

φ13 {0.51}

Point symbol	Designation	Hole diameter or bolt or nut size (mm {in})
A	Rear pillar inner datum hole	φ7 {0.28}
B	Rear pillar inner datum hole	φ5 {0.20}
C	Rear pillar inner datum hole	φ7 {0.28}
D	Crossmember No.5 datum slot	7.2 × 10 {0.28 × 0.39}
E	Rear pillar inner datum hole	φ6 {0.24}
F	Corner junction datum hole	φ8.6 {0.34}
G	Rear end member square hole	28 × 8 {1.10 × 0.31}
H	Rear door striker installation hole	φ13 {0.51}
