DTC P2147:00 [PCM (SKYACTIV-D 2.2)]

id0102j5152700

DTC P2147:00

Fuel injector No.1 and No.4 circuit low input

DETECTION CONDITION

•  When the following condition is met, the PCM detects that the control current at fuel injectors No.1 and No.4 is 35 A or more or the control voltage is less than 40 V12 times.

―  Battery positive voltage: 8 V or more

Diagnostic support note

•  This is a continuous monitor (CCM).

•  The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.

•  FREEZE FRAME DATA/Snapshot data is available.

•  DTC is stored in the PCM memory.

FAIL-SAFE FUNCTION

•  Limits engine torque.

•  Inhibits the automatic diesel particulate filter regeneration control.

•  Inhibits the manual diesel particulate filter regeneration control.

•  Inhibits the EGR control.

•  Stops the G-vectoring control (GVC).

•  Limits the engine transaxle total control.

•  Inhibits engine-stop by i-stop control.

POSSIBLE CAUSE

•  Fuel injector No.1 connector or terminal malfunction

•  Fuel injector No.4 connector or terminal malfunction

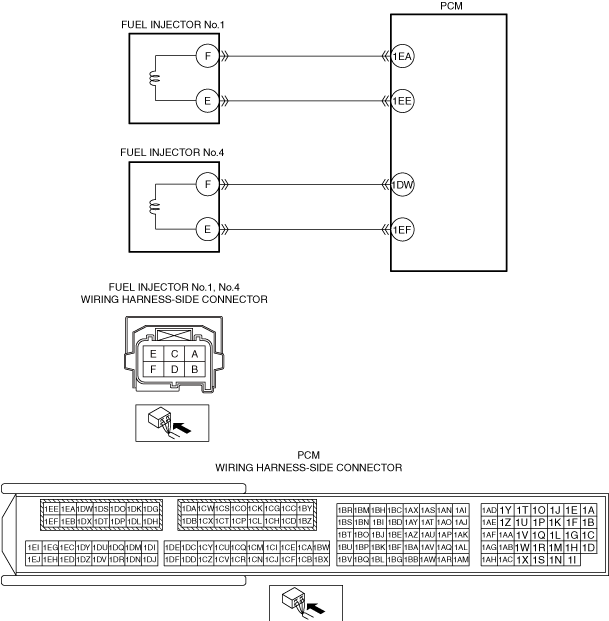

•  Short to ground in wiring harness between the following terminals:

―  Fuel injector No.1 terminal F and PCM terminal 1EA

―  Fuel injector No.1 terminal E and PCM terminal 1EE

―  Fuel injector No.4 terminal F and PCM terminal 1DW

―  Fuel injector No.4 terminal E and PCM terminal 1EF

•  PCM connector or terminal malfunction

•  Fuel injector No.1 malfunction

•  Fuel injector No.4 malfunction

•  PCM malfunction

DTC P2147:00	Fuel injector No.1 and No.4 circuit low input
DETECTION CONDITION	• When the following condition is met, the PCM detects that the control current at fuel injectors No.1 and No.4 is 35 A or more or the control voltage is less than 40 V12 times. ― Battery positive voltage: 8 V or more Diagnostic support note • This is a continuous monitor (CCM). • The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle. • FREEZE FRAME DATA/Snapshot data is available. • DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	• Limits engine torque. • Inhibits the automatic diesel particulate filter regeneration control. • Inhibits the manual diesel particulate filter regeneration control. • Inhibits the EGR control. • Stops the G-vectoring control (GVC). • Limits the engine transaxle total control. • Inhibits engine-stop by i-stop control.
POSSIBLE CAUSE	• Fuel injector No.1 connector or terminal malfunction • Fuel injector No.4 connector or terminal malfunction • Short to ground in wiring harness between the following terminals: ― Fuel injector No.1 terminal F and PCM terminal 1EA ― Fuel injector No.1 terminal E and PCM terminal 1EE ― Fuel injector No.4 terminal F and PCM terminal 1DW ― Fuel injector No.4 terminal E and PCM terminal 1EF • PCM connector or terminal malfunction • Fuel injector No.1 malfunction • Fuel injector No.4 malfunction • PCM malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION

Note

•  Recording can be facilitated using the screen capture function of the PC.

•  Record the freeze frame data/snap shot data.

—

Go to the next step.

2

INSPECT FUEL INJECTOR NO.1 CONNECTOR CONDITION

•  Switch the ignition OFF.

•  Disconnect the fuel injector No.1 connector.

•  Inspect the connector engagement and connection condition, and inspect the terminals for damage, deformation, corrosion, or disconnection.

•  Is the connector normal?

Yes

Go to the next step.

No

Repair or replace the connector, then go to Step 8.

3

INSPECT FUEL INJECTOR NO.4 CONNECTOR CONDITION

•  Disconnect the fuel injector No.4 connector.

•  Inspect the connector engagement and connection condition, and inspect the terminals for damage, deformation, corrosion, or disconnection.

•  Is the connector normal?

Yes

Go to the next step.

No

Repair or replace the connector, then go to Step 8.

4

INSPECT PCM CONNECTOR CONDITION

•  Disconnect the PCM connector.

•  Inspect the connector engagement and connection condition, and inspect the terminals for damage, deformation, corrosion, or disconnection.

•  Is the connector normal?

Yes

Go to the next step.

No

Repair or replace the connector, then go to Step 8.

5

INSPECT FUEL INJECTOR CIRCUIT FOR SHORT TO GROUND

•  Verify that the fuel injector No.1 and No.4 connectors are disconnected.

•  Inspect for continuity between the following terminals (vehicle wiring harness side) and ground.

―  Fuel injector No.1 terminal F

―  Fuel injector No.1 terminal E

―  Fuel injector No.4 terminal F

―  Fuel injector No.4 terminal E

•  Is there continuity?

Yes

Refer to the wiring diagram and verify if there is a common connector between the following terminals.

•  Fuel injector No.1 terminal F and PCM terminal 1EA

•  Fuel injector No.1 terminal E and PCM terminal 1EE

•  Fuel injector No.4 terminal F and PCM terminal 1DW

•  Fuel injector No.4 terminal E and PCM terminal 1EF

If there is a common connector:

―  Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for short to ground to determine the malfunctioning location.

―  Repair or replace the malfunctioning location, then go to Step 8.

If there is no common connector:

―  Repair or replace the wiring harness which is shorted to ground, then go to Step 8.

Go to Step 8.

No

Go to the next step.

6

INSPECT FUEL INJECTOR NO.1

•  Inspect fuel injector No.1.
(See FUEL INJECTOR INSPECTION [SKYACTIV-D 2.2])

•  Is fuel injector No.1 normal?

Yes

Go to the next step.

No

Replace fuel injector No.1, then go to Step 8.

(See FUEL INJECTOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2])

7

INSPECT FUEL INJECTOR NO.4

•  Inspect fuel injector No.4.
(See FUEL INJECTOR INSPECTION [SKYACTIV-D 2.2])

•  Is fuel injector No.4 normal?

Yes

Go to the next step.

No

Replace fuel injector No.4, then go to the next step.

(See FUEL INJECTOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2])

8

VERIFY THAT REPAIRS HAVE BEEN COMPLETED

•  Reconnect all the disconnected connectors.

•  Refer to the [MEMORY CLEARING PROCEDURE] and clear the DTC.
(See CLEARING DTC [PCM (SKYACTIV-D 2.2)])

•  Perform the KOER self-test.
(See KOEO/KOER SELF TEST [PCM (SKYACTIV-D 2.2)])

•  Has DTC P2147:00 been recorded?

Yes

Repeat the inspection from Step 1.

•  If the malfunction recurs, replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [SKYACTIV-D 2.2])

No

Go to the next step.

9

VERIFY OTHER DTCs

•  Has any other DTC or pending code been stored?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (SKYACTIV-D 2.2)])

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION Note • Recording can be facilitated using the screen capture function of the PC. • Record the freeze frame data/snap shot data.	—	Go to the next step.
2	INSPECT FUEL INJECTOR NO.1 CONNECTOR CONDITION • Switch the ignition OFF. • Disconnect the fuel injector No.1 connector. • Inspect the connector engagement and connection condition, and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
2		No	Repair or replace the connector, then go to Step 8.
3	INSPECT FUEL INJECTOR NO.4 CONNECTOR CONDITION • Disconnect the fuel injector No.4 connector. • Inspect the connector engagement and connection condition, and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
3		No	Repair or replace the connector, then go to Step 8.
4	INSPECT PCM CONNECTOR CONDITION • Disconnect the PCM connector. • Inspect the connector engagement and connection condition, and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
4		No	Repair or replace the connector, then go to Step 8.
5	INSPECT FUEL INJECTOR CIRCUIT FOR SHORT TO GROUND • Verify that the fuel injector No.1 and No.4 connectors are disconnected. • Inspect for continuity between the following terminals (vehicle wiring harness side) and ground. ― Fuel injector No.1 terminal F ― Fuel injector No.1 terminal E ― Fuel injector No.4 terminal F ― Fuel injector No.4 terminal E • Is there continuity?	Yes	Refer to the wiring diagram and verify if there is a common connector between the following terminals. • Fuel injector No.1 terminal F and PCM terminal 1EA • Fuel injector No.1 terminal E and PCM terminal 1EE • Fuel injector No.4 terminal F and PCM terminal 1DW • Fuel injector No.4 terminal E and PCM terminal 1EF If there is a common connector: ― Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for short to ground to determine the malfunctioning location. ― Repair or replace the malfunctioning location, then go to Step 8. If there is no common connector: ― Repair or replace the wiring harness which is shorted to ground, then go to Step 8. Go to Step 8.
5		No	Go to the next step.
6	INSPECT FUEL INJECTOR NO.1 • Inspect fuel injector No.1. (See FUEL INJECTOR INSPECTION [SKYACTIV-D 2.2]) • Is fuel injector No.1 normal?	Yes	Go to the next step.
6		No	Replace fuel injector No.1, then go to Step 8. (See FUEL INJECTOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2])
7	INSPECT FUEL INJECTOR NO.4 • Inspect fuel injector No.4. (See FUEL INJECTOR INSPECTION [SKYACTIV-D 2.2]) • Is fuel injector No.4 normal?	Yes	Go to the next step.
7		No	Replace fuel injector No.4, then go to the next step. (See FUEL INJECTOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2])
8	VERIFY THAT REPAIRS HAVE BEEN COMPLETED • Reconnect all the disconnected connectors. • Refer to the [MEMORY CLEARING PROCEDURE] and clear the DTC. (See CLEARING DTC [PCM (SKYACTIV-D 2.2)]) • Perform the KOER self-test. (See KOEO/KOER SELF TEST [PCM (SKYACTIV-D 2.2)]) • Has DTC P2147:00 been recorded?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION [SKYACTIV-D 2.2])
8		No	Go to the next step.
9	VERIFY OTHER DTCs • Has any other DTC or pending code been stored?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-D 2.2)])
9		No	DTC troubleshooting completed.
