INAPPROPRIATE OPERATION AND CONTROL RECORD [PCM (SKYACTIV-D 2.2)]
id0102j5162300
Purpose
• For the purpose of protecting passengers and the vehicle, the PCM performs protection control according to the vehicle driving conditions/environment surrounding the vehicle.
The inappropriate operation and control record of the protection control executed by the PCM can be displayed using the Mazda Modular Diagnostic System (M-MDS) and it can be used during malfunction diagnosis.
Function/display
• The PCM records the following information as an inappropriate operation and control record.
-
― Inappropriate operation and control code
― Inappropriate operation and control type
― Odometer value

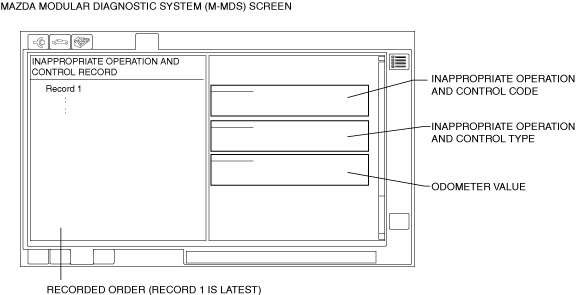

• The Mazda Modular Diagnostic System (M-MDS) reads out the inappropriate operation and control record and indicates it as shown in the figure below.
Inappropriate operation and control code table
|
Inappropriate operation and control code
|
Inappropriate operation and control type
|
|
0x43
|
Unusual voltage of a battery
|
|
0x51
|
Cold condition damage prevention control
|
