DTC P2B60:00 [PCM (SKYACTIV-D 2.2)]

id0102j5167900

Note

•  To determine the malfunctioning part, proceed with the diagnostics from [Function inspection using M-MDS].

Details on DTCs

System malfunction location	Coolant control valve control: Internal malfunction
Detection condition	Determination condition	•  The coolant control valve position sensor determines that the coolant control valve has an internal malfunction, and the PCM receives an error signal from the coolant control valve position sensor for 5 s.
	Preconditions	•  Not applicable
	Drive cycle	•  2
	Self-test type	•  CMDTC self test
	Sensor/unit used	•  Coolant control valve position sensor
Fail-safe	•  Limits engine torque. •  Inhibits the EGR control.
Vehicle status when DTCs are output	•  Check engine light turns on
Possible cause	•  Coolant control valve/coolant control valve position sensor connector or terminal malfunction •  PCM connector or terminal malfunction •  Coolant control valve position sensor malfunction

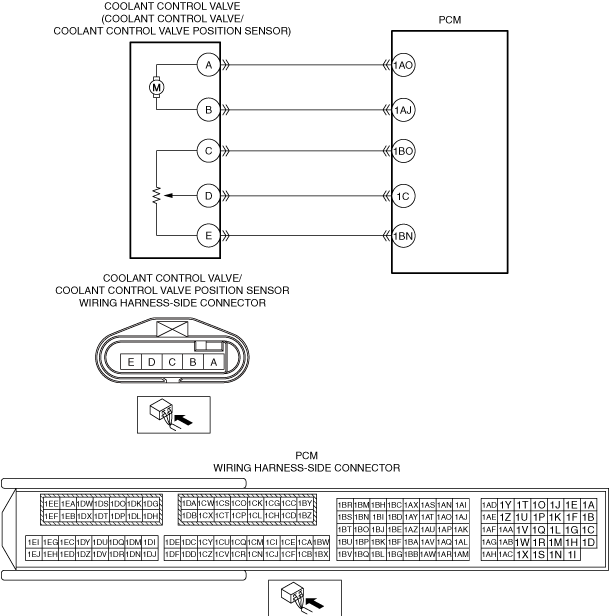

System Wiring Diagram

ac8wzw00003184

Function Explanation (DTC Detection Outline)

Repeatability Verification Procedure

PID Item/Simulation Item Used in Diagnosis

PID

Function Inspection Using M-MDS

Step	Inspection	Results	Action
1	PURPOSE: VERIFY DTC CAUSING FREEZE FRAME DATA (MODE 2) •  Is DTC P2B60:00 causing the freeze frame data (mode 2)?	Yes	Go to the next step.
		No	Inspect the DTC causing the freeze frame data (mode 2). (See DTC TABLE [PCM (SKYACTIV-D 2.2)].)
2	PURPOSE: RECORD VEHICLE STATUS AT TIME OF DTC DETECTION TO UTILIZE WITH REPEATABILITY VERIFICATION •  Has the freeze frame data (mode 2)/snap shot data been recorded?	Yes	Go to the next step.
		No	Record the freeze frame data (mode 2)/snap shot data, then go to the next step. Note •  Recording can be facilitated using the screen capture function of the PC.
3	PURPOSE: VERIFY IF OTHER RELATED DTCs OCCURRED SIMULTANEOUSLY •  Switch the ignition OFF, and then switch it ON (engine off). •  Display the DTCs using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].) •  Has any DTC other than P2B60:00 or pending code been stored?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-D 2.2)].)
		No	Go to the next step.
4	PURPOSE: VERIFY INPUT SIGNAL OF COOLANT CONTROL VALVE POSITION SENSOR •  Switch the ignition ON (engine off). •  Display the following PIDs using the M-MDS. ―  CCV_DSD ―  CCV_ACT (See PCM INSPECTION [SKYACTIV-D 2.2].) •  Are the monitoring values normal?	Yes	Go to the troubleshooting procedure to perform the procedure from Step 1.
		No	Go to the next step.
5	PURPOSE: VERIFY INPUT SIGNAL OF COOLANT CONTROL VALVE POSITION SENSOR •  Display the following PIDs using the M-MDS. ―  CCV_DSD ―  CCV_ACT (See PCM INSPECTION [SKYACTIV-D 2.2].) •  When the PCM and the connector of the coolant control valve position sensor are shaken, does the PID value include a PID item which has changed?	Yes	Inspect the related wiring harnesses and connectors. •  Repair or replace the malfunctioning location. Go to the troubleshooting procedure to perform the procedure from Step 3.
		No	Go to the troubleshooting procedure to perform the procedure from Step 1.

Troubleshooting Diagnostic Procedure

―  Verify that there is no problem with engagement of each separate part.

―  Perform inspection of each separate part.

―  Verify that the primary malfunction is resolved and there are no other malfunctions.

Step	Inspection	Results	Action
1	PURPOSE: VERIFY INSTALLATION CONDITION OF COOLANT CONTROL VALVE •  Verify that there is no looseness in the coolant control valve installation. •  Is the coolant control valve installation normal?	Yes	Go to the next step.
		No	Install the coolant control valve correctly, then go to Step 3. (See COOLANT CONTROL VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
2	PURPOSE: INSPECT COOLANT CONTROL VALVE •  Inspect the coolant control valve. (See COOLANT CONTROL VALVE INSPECTION [SKYACTIV-D 2.2].) •  Is the coolant control valve normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location, then go to the next step.
3	PURPOSE: VERIFICATION OF VEHICLE REPAIR COMPLETION •  Reconnect all disconnected connectors and hoses. •  Refer to the [MEMORY CLEARING PROCEDURE] and clear the DTC. (See CLEARING DTC [PCM (SKYACTIV-D 2.2)].) •  Perform the KOEO or KOER self-test. (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].) •  Is DTC P2B60:00 displayed?	Yes	Repeat the inspection from Step 1. •  If the malfunction recurs, replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
		No	Go to the next step.
4	PURPOSE: VERIFY IF THERE IS ANY OTHER MALFUNCTION •  Has any other DTC or pending code been stored?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-D 2.2)].)
		No	DTC troubleshooting completed.
