DTC P0523:00 [PCM (SKYACTIV-D 2.2)]

id0102j5212900

DTC P0523:00

Engine oil pressure sensor circuit high input

DETECTION CONDITION

•  With the following conditions met, the output voltage of the engine oil pressure sensor exceeds 4.81 V for a continuous 2.5 s.

―  Battery positive voltage: 8—16 V

―  0.5 s have elapsed after ignition is switched ON (engine off or on)

―  The following DTCs are not detected

•  Constant voltage power supply control system: P0642:00, P0643:00

Diagnostic support note

•  This is a continuous monitor (CCM).

•  The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.

•  FREEZE FRAME DATA/Snapshot data is available.

•  DTC is stored in the PCM memory.

FAIL-SAFE FUNCTION

•  Limits engine torque.

POSSIBLE CAUSE

•  Engine oil temperature/engine oil pressure sensor connector or terminal malfunction

•  PCM connector or terminal malfunction

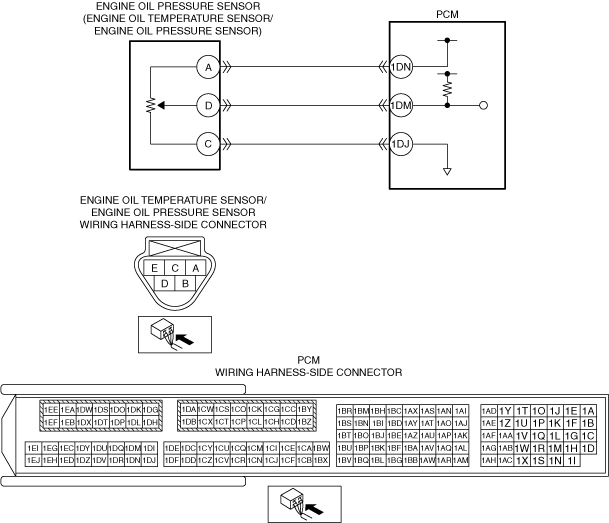

•  Short to power supply in wiring harness between engine oil temperature/engine oil pressure sensor terminal D and PCM terminal 1DM

•  Short circuit in engine oil pressure sensor power supply circuit and ground circuit

•  Open circuit in wiring harness between the following terminals:

―  Engine oil temperature/engine oil pressure sensor terminal D and PCM terminal 1DM

―  Engine oil temperature/engine oil pressure sensor terminal C and PCM terminal 1DJ

•  Engine oil pressure sensor malfunction

•  PCM malfunction

DTC P0523:00	Engine oil pressure sensor circuit high input
DETECTION CONDITION	• With the following conditions met, the output voltage of the engine oil pressure sensor exceeds 4.81 V for a continuous 2.5 s. ― Battery positive voltage: 8—16 V ― 0.5 s have elapsed after ignition is switched ON (engine off or on) ― The following DTCs are not detected • Constant voltage power supply control system: P0642:00, P0643:00 Diagnostic support note • This is a continuous monitor (CCM). • The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle. • FREEZE FRAME DATA/Snapshot data is available. • DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	• Limits engine torque.
POSSIBLE CAUSE	• Engine oil temperature/engine oil pressure sensor connector or terminal malfunction • PCM connector or terminal malfunction • Short to power supply in wiring harness between engine oil temperature/engine oil pressure sensor terminal D and PCM terminal 1DM • Short circuit in engine oil pressure sensor power supply circuit and ground circuit • Open circuit in wiring harness between the following terminals: ― Engine oil temperature/engine oil pressure sensor terminal D and PCM terminal 1DM ― Engine oil temperature/engine oil pressure sensor terminal C and PCM terminal 1DJ • Engine oil pressure sensor malfunction • PCM malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION

Note

•  Recording can be facilitated using the screen capture function of the PC.

•  Record the freeze frame data/snap shot data.

—

Go to the next step.

2

INSPECT ENGINE OIL TEMPERATURE/ENGINE OIL PRESSURE SENSOR CONNECTOR CONDITION

•  Switch the ignition OFF.

•  Disconnect the engine oil temperature/engine oil pressure sensor connector.

•  Inspect the connector engagement and connection condition, and inspect the terminals for damage, deformation, corrosion, or disconnection.

•  Is the connector normal?

Yes

Go to the next step.

No

Repair or replace the connector, then go to Step 8.

3

INSPECT PCM CONNECTOR CONDITION

•  Disconnect the PCM connector.

•  Inspect the connector engagement and connection condition, and inspect the terminals for damage, deformation, corrosion, or disconnection.

•  Is the connector normal?

Yes

Go to the next step.

No

Repair or replace the connector, then go to Step 8.

4

INSPECT ENGINE OIL PRESSURE SENSOR SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY

•  Verify that the engine oil temperature/engine oil pressure sensor connector and the PCM connector are disconnected.

•  Switch the ignition ON (engine off).

Note

•  Another DTC may be stored by the PCM detecting an open circuit.

•  Measure the voltage at engine oil temperature/engine oil pressure sensor terminal D (vehicle wiring harness side).

•  Is the voltage 0 V?

Yes

Go to the next step.

No

Refer to the wiring diagram and verify if there is a common connector between engine oil temperature/engine oil pressure sensor terminal D and PCM terminal 1DM.

If there is a common connector:

•  Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for short to power supply to determine the malfunctioning location.

•  Repair or replace the malfunctioning location.

If there is no common connector:

•  Repair or replace the wiring harness which is shorted to the power supply.

Go to Step 8.

5

INSPECT ENGINE OIL PRESSURE SENSOR POWER SUPPLY CIRCUIT AND SIGNAL CIRCUIT FOR SHORT CIRCUIT

•  Verify that the engine oil temperature/engine oil pressure sensor connector and the PCM connector are disconnected.

•  Switch the ignition OFF.

•  Inspect for continuity between engine oil temperature/engine oil pressure sensor terminals A and D (vehicle wiring harness side).

•  Is there continuity?

Yes

Refer to the wiring diagram and verify if there is a common connector between the following terminals.

•  Engine oil temperature/engine oil pressure sensor terminal A and PCM terminal 1DN

•  Engine oil temperature/engine oil pressure sensor terminal D and PCM terminal 1DM

If there is a common connector:

―  Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for short circuit to determine the malfunctioning location.

―  Repair or replace the malfunctioning location.

If there is no common connector:

―  Repair or replace the malfunctioning wiring harness.

Go to Step 8.

No

Go to the next step.

6

INSPECT ENGINE OIL PRESSURE SENSOR CIRCUIT FOR OPEN CIRCUIT

•  Verify that the engine oil temperature/engine oil pressure sensor connector and the PCM connector are disconnected.

•  Inspect between the following terminals (vehicle wiring harness side) for continuity.

―  Engine oil temperature/engine oil pressure sensor terminal D and PCM terminal 1DM

―  Engine oil temperature/engine oil pressure sensor terminal C and PCM terminal 1DJ

•  Is there continuity?

Yes

Go to the next step.

No

Refer to the wiring diagram and verify if there is a common connector between the following terminals.

•  Engine oil temperature/engine oil pressure sensor terminal D and PCM terminal 1DM

•  Engine oil temperature/engine oil pressure sensor terminal C and PCM terminal 1DJ

If there is a common connector:

―  Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for an open circuit to determine the malfunctioning location.

―  Repair or replace the malfunctioning location.

If there is no common connector:

―  Repair or replace the wiring harness which has an open circuit.

Go to Step 8.

7

INSPECT ENGINE OIL PRESSURE SENSOR

•  Reconnect all the disconnected connectors.

•  Inspect the engine oil pressure sensor.
(See ENGINE OIL PRESSURE SENSOR INSPECTION [SKYACTIV-D 2.2].)

•  Is the engine oil pressure sensor normal?

Yes

Go to the next step.

No

Replace the engine oil temperature/engine oil pressure sensor, then go to the next step.

(See ENGINE OIL TEMPERATURE SENSOR/ENGINE OIL PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

8

VERIFY THAT REPAIRS HAVE BEEN COMPLETED

•  Reconnect all the disconnected connectors.

•  Refer to the [MEMORY CLEARING PROCEDURE] and clear the DTC.
(See CLEARING DTC [PCM (SKYACTIV-D 2.2)].)

•  Perform the KOEO or KOER self-test.
(See KOEO/KOER SELF TEST [PCM (SKYACTIV-D 2.2)].)

•  Has DTC P0523:00 been recorded?

Yes

Repeat the inspection from Step 1.

•  If the malfunction recurs, replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

No

Go to the next step.

9

VERIFY OTHER DTCs

•  Has any other DTC or pending code been stored?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (SKYACTIV-D 2.2)].)

No

DTC troubleshooting completed.
