DTC P0103:00 [PCM (SKYACTIV-D 2.2)]

id0102j5701000

DTC P0103:00

MAF sensor circuit high input

DETECTION CONDITION

•  With the following conditions met, the MAF sensor voltage is 4.61 V or more for a continuous 5 s.

―  Battery positive voltage: 8—16 V

―  0.5 s have elapsed after ignition is switched ON (engine off or on)

―  The following DTCs are not detected

•  Constant voltage power supply control system: P0642:00, P0643:00

Diagnostic support note

•  This is a continuous monitor (CCM).

•  The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.

•  FREEZE FRAME DATA/Snapshot data is available.

•  DTC is stored in the PCM memory.

FAIL-SAFE FUNCTION

•  Limits engine torque.

•  Inhibits the automatic diesel particulate filter regeneration control.

•  Inhibits the manual diesel particulate filter regeneration control.

•  Inhibits the EGR control.

POSSIBLE CAUSE

•  Intake air amount is abnormally large

•  MAF/IAT sensor No.1 connector or terminal malfunction

•  PCM connector or terminal malfunction

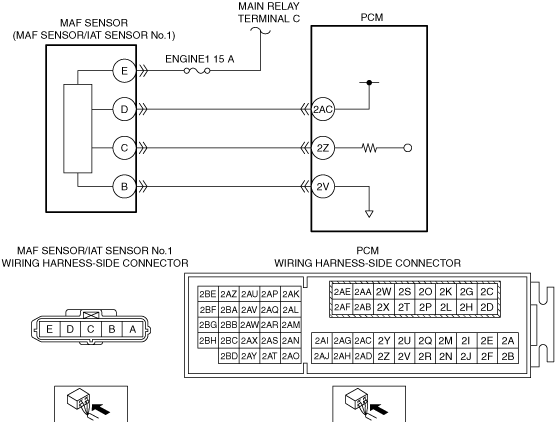

•  Short to power supply in wiring harness between MAF/IAT sensor No.1 terminal C and PCM terminal 2Z

•  Short circuit in MAF sensor power supply circuit and signal circuit

•  Open circuit in wiring harness between MAF/IAT sensor No.1 terminal B and PCM terminal 2V

•  MAF sensor malfunction

•  PCM malfunction

DTC P0103:00	MAF sensor circuit high input
DETECTION CONDITION	• With the following conditions met, the MAF sensor voltage is 4.61 V or more for a continuous 5 s. ― Battery positive voltage: 8—16 V ― 0.5 s have elapsed after ignition is switched ON (engine off or on) ― The following DTCs are not detected • Constant voltage power supply control system: P0642:00, P0643:00 Diagnostic support note • This is a continuous monitor (CCM). • The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle. • FREEZE FRAME DATA/Snapshot data is available. • DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	• Limits engine torque. • Inhibits the automatic diesel particulate filter regeneration control. • Inhibits the manual diesel particulate filter regeneration control. • Inhibits the EGR control.
POSSIBLE CAUSE	• Intake air amount is abnormally large • MAF/IAT sensor No.1 connector or terminal malfunction • PCM connector or terminal malfunction • Short to power supply in wiring harness between MAF/IAT sensor No.1 terminal C and PCM terminal 2Z • Short circuit in MAF sensor power supply circuit and signal circuit • Open circuit in wiring harness between MAF/IAT sensor No.1 terminal B and PCM terminal 2V • MAF sensor malfunction • PCM malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION

Note

•  Recording can be facilitated using the screen capture function of the PC.

•  Record the freeze frame data/snap shot data.

—

Go to the next step.

2

INSPECT MAF/IAT SENSOR NO.1 CONNECTOR CONDITION

•  Switch the ignition OFF.

•  Disconnect the MAF/IAT sensor No.1 connector.

•  Inspect the connector engagement and connection condition, and inspect the terminals for damage, deformation, corrosion, or disconnection.

•  Is the connector normal?

Yes

Go to the next step.

No

Repair or replace the connector, then go to Step 8.

3

INSPECT PCM CONNECTOR CONDITION

•  Disconnect the PCM connector.

•  Inspect the connector engagement and connection condition, and inspect the terminals for damage, deformation, corrosion, or disconnection.

•  Is the connector normal?

Yes

Go to the next step.

No

Repair or replace the connector, then go to Step 8.

4

INSPECT MAF SENSOR SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY

•  Verify that the MAF/IAT sensor No.1 connector and the PCM connector are disconnected.

•  Switch the ignition ON (engine off).

Note

•  Another DTC may be stored by the PCM detecting an open circuit.

•  Measure the voltage at MAF/IAT sensor No.1 terminal C (vehicle wiring harness side).

•  Is the voltage 0 V?

Yes

Go to the next step.

No

Refer to the wiring diagram and verify if there is a common connector between MAF/IAT sensor No.1 terminal C and PCM terminal 2Z.

If there is a common connector:

•  Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for short to power supply to determine the malfunctioning location.

•  Repair or replace the malfunctioning location.

If there is no common connector:

•  Repair or replace the wiring harness which is shorted to the power supply.

Go to Step 8.

5

INSPECT MAF SENSOR POWER SUPPLY CIRCUIT AND SIGNAL CIRCUIT FOR SHORT CIRCUIT

•  Verify that the MAF/IAT sensor No.1 connector and the PCM connector are disconnected.

•  Switch the ignition OFF.

•  Inspect for continuity between MAF/IAT sensor No.1 terminals D and C (vehicle wiring harness side).

•  Is there continuity?

Yes

Refer to the wiring diagram and verify if there is a common connector between the following terminals.

•  MAF/IAT sensor No.1 terminal D and PCM terminal 2AC

•  MAF/IAT sensor No.1 terminal C and PCM terminal 2Z

If there is a common connector:

―  Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for short circuit to determine the malfunctioning location.

―  Repair or replace the malfunctioning location.

If there is no common connector:

―  Repair or replace the malfunctioning wiring harness.

Go to Step 8.

No

Go to the next step.

6

INSPECT MAF SENSOR CIRCUIT FOR OPEN CIRCUIT

•  Verify that the MAF/IAT sensor No.1 connector and the PCM connector are disconnected.

•  Inspect the wiring harness for continuity between MAF/IAT sensor No.1 terminal B (vehicle wiring harness side) and PCM terminal 2V (vehicle wiring harness side).

•  Is there continuity?

Yes

Go to the next step.

No

Refer to the wiring diagram and verify if there is a common connector between MAF/IAT sensor No.1 terminal B and PCM terminal 2V.

If there is a common connector:

•  Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for an open circuit to determine the malfunctioning location.

•  Repair or replace the malfunctioning location.

If there is no common connector:

•  Repair or replace the wiring harness which has an open circuit.

Go to Step 8.

7

INSPECT MAF SENSOR

•  Reconnect all the disconnected connectors.

•  Inspect the MAF sensor.
(See MASS AIR FLOW (MAF) SENSOR INSPECTION [SKYACTIV-D 2.2]

•  Is the MAF sensor normal?

Yes

Go to the next step.

No

Replace MAF/IAT sensor No.1, then go to the next step.

(See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.1 REMOVAL/INSTALLATION [SKYACTIV-D 2.2])

8

VERIFY THAT REPAIRS HAVE BEEN COMPLETED

•  Reconnect all the disconnected connectors.

•  Refer to the [MEMORY CLEARING PROCEDURE] and clear the DTC.
(See CLEARING DTC [PCM (SKYACTIV-D 2.2)])

•  Perform the KOEO or KOER self-test.
(See KOEO/KOER SELF TEST [PCM (SKYACTIV-D 2.2)])

•  Has DTC P0103:00 been recorded?

Yes

Repeat the inspection from Step 1.

•  If the malfunction recurs, replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [SKYACTIV-D 2.2])

No

Go to the next step.

9

VERIFY OTHER DTCs

•  Has any other DTC or pending code been stored?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (SKYACTIV-D 2.2)])

No

DTC troubleshooting completed.
