OIL PAN [SKYACTIV-G 2.5]


id0111h4002300


Purpose, Function

•  The engine oil required for lubrication in the engine accumulates in the oil pan.

Construction

•  The oil pan is installed on the lower part of the cylinder block.

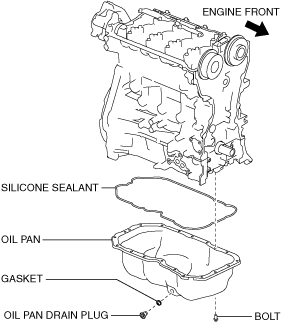

ac5wzn00004880
•  Silicone sealant with excellent sealing has been adopted for the oil pan gasket.
