LUBRICATION SYSTEM LOCATION INDEX [SKYACTIV-G 2.5]

id0111h4800100

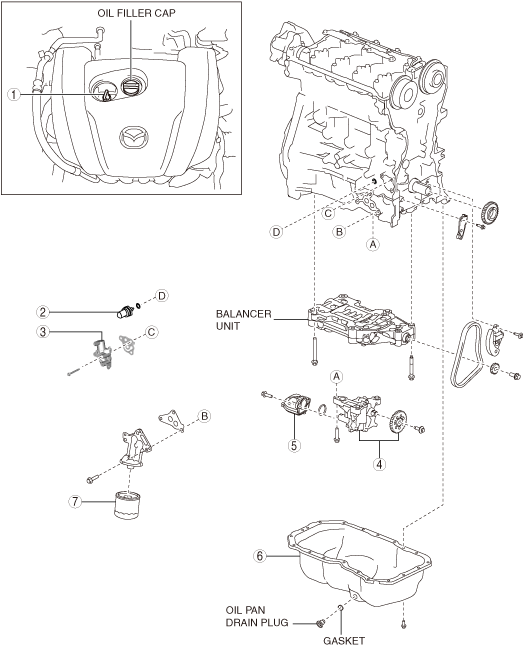

ac8wzw00003777

1	Dipstick (See ENGINE OIL LEVEL INSPECTION [SKYACTIV-G 2.5].) (See ENGINE OIL REPLACEMENT [SKYACTIV-G 2.5].)
2	Engine oil temperature sensor/engine oil pressure sensor (See OIL PRESSURE INSPECTION [SKYACTIV-G 2.5].)
3	Engine oil solenoid valve (See ENGINE OIL SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See ENGINE OIL SOLENOID VALVE INSPECTION [SKYACTIV-G 2.5].)
4	Oil pump component (See OIL PUMP REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
5	Oil strainer (See OIL PUMP REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
6	Oil pan (See OIL PUMP REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
7	Oil filter (See OIL FILTER REPLACEMENT [SKYACTIV-G 2.5].)
