COOLING FAN COMPONENT [SKYACTIV-G 2.5]

id0112h5003200

Purpose, Function

• The cooling fan rotates according to vehicle conditions and enhances the cooling efficiency of the radiator.

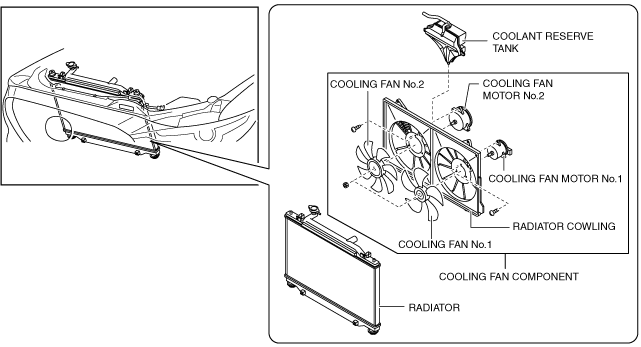

Structural View

ac8wzn00001022

Operation

• For electrical fan control details, refer to CONTROL SYSTEM. (See ELECTRICAL FAN CONTROL [SKYACTIV-G 2.5].)

Fail-safe

• Function not equipped.
