COOLING FAN MOTOR INSPECTION [SKYACTIV-G 2.5]

id0112h5801800

Part Inspection

1.  Verify that the battery is fully charged. (See BATTERY INSPECTION.)

2.  Disconnect the cooling fan motor connector (2 terminals).

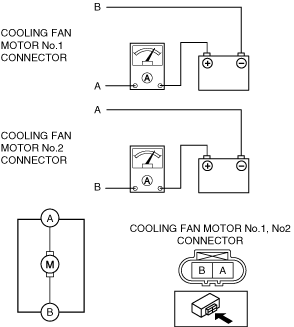

3.  Install a tester and battery to the cooling fan motor connector (2 terminals) as shown in the figure.

ac5wzw00011263

4.  Verify that each cooling fan motor operates smoothly at the standard current.

•  If there is any malfunction, replace the applicable part.
