AIR CLEANER [SKYACTIV-D 2.2]
id0113z7003500
Purpose, Function
• Prevents engine internal damage caused by penetration of dust or foreign material.
Construction
• The air cleaner is installed in front of the battery.

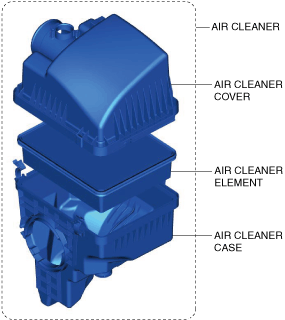

• The air cleaner consists of the air cleaner case, air cleaner cover, and air cleaner element.

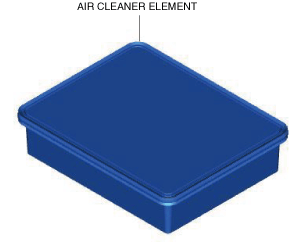

• Non-woven fabric (dry type) air cleaner element has been adopted to remove dust and foreign material in the intake air.
