•  Controls the voltage applied to the glow plugs for improved startability during cold temperatures.

•  Controls the voltage applied to the glow plugs based on the control signal from the PCM.

•  The glow control module is installed to the side of the relay box (LH).

ac8wzn00000145

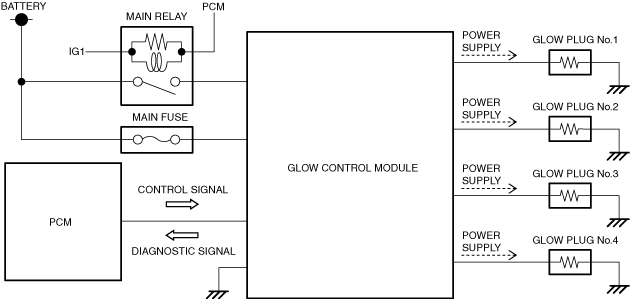

•  Controls the voltage applied to the glow plugs based on the control signal from the PCM. In addition, the on-board diagnostic function is equipped and if there is a malfunction in the glow control module, a diagnostic signal is sent to the PCM. The PCM stores a DTC if necessary according to the received diagnostic signal.

ac8wzn00000146

•  Not applicable.
