CHARGE AIR COOLER [SKYACTIV-D 2.2]

id0113z7706800

Purpose, Function

• Cools the intake air which is compressed and heated by the turbocharger.

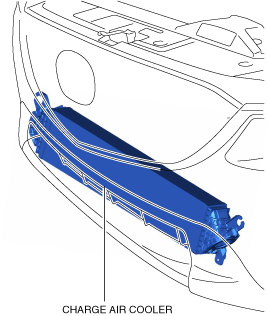

Construction

• The charge air cooler is installed to the backside of the front bumper.

ac8wzn00000161

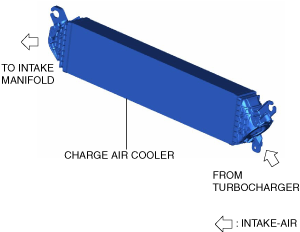

Operation

• The charge air cooler cools the intake air which is compressed and heated by the turbochargers to concentrate the air density of the intake air.

ac8wzn00000162
