SUCTION CONTROL VALVE [SKYACTIV-D 2.2]

id0114z7707500


Purpose, Function

•  The suction control valve controls the common rail pressure by adjusting the intake amount to the supply pump and controlling the discharge amount.

Construction

•  The suction control valve is built into the supply pump.

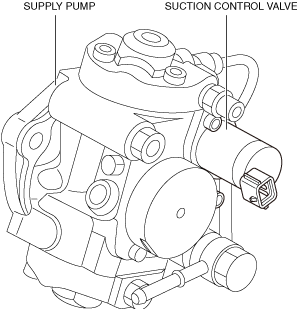

ac8wzn00000180
•  The suction control valve consists of the valve, valve body, and armature.

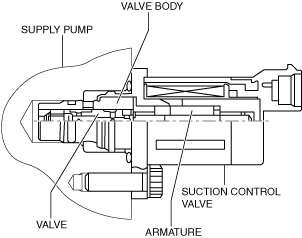

ac8wzn00000181

Operation

•  The intake amount controls the solenoid drive current by duty control, and adjusts it by changing the valve opening angle. When the solenoid drive current is small, the intake amount decreases, and when it is large the intake amount increases.

Non-energization (closed)

•  The port in the valve is closed.

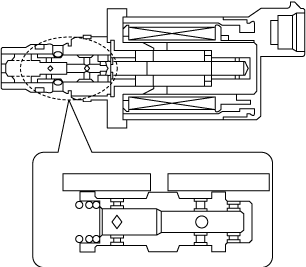

ac8wzn00000182


Energization (open)

•  The port in the valve opens and fuel is sent to the high pressure chamber.
ac8wzn00000183


Fail-safe

DTCs

Fail-safe
P0628:00
•  Limits the engine torque/limits the maximum engine speed.
•  Inhibits the automatic DPF regeneration control.
•  Inhibits the intake shutter valve control.
•  Inhibits the manual DPF regeneration control.
•  Inhibits the EGR control.
•  Stops the G-vectoring control (GVC).
•  Limits the engine transaxle total control.
•  Inhibits the boost control.
•  Inhibits engine-stop by i-stop control.
P0629:00
•  Limits the engine torque/limits the maximum engine speed.
•  Restricts the upper limit of the APP sensor output.
•  Inhibits the automatic DPF regeneration control.
•  Inhibits the manual DPF regeneration control.
•  Inhibits the EGR control.
•  Stops the G-vectoring control (GVC).
•  Limits the engine transaxle total control.
•  Increase the idle speed.
•  Inhibits the boost control.
•  Inhibits engine-stop by i-stop control.
