FUEL PRESSURE RELIEF VALVE [SKYACTIV-D 2.2]

id0114z7707800


Purpose, Function

•  If the pressure in the common rail exceeds a certain value, fuel is discharged to assure safety.

Construction

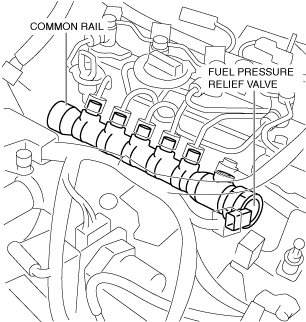

•  The fuel pressure relief valve is installed to the common rail.
ac8wzn00000184

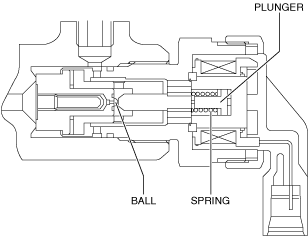

•  The fuel pressure relief valve consists of a spring, ball, and plunger.
ac5wzn00002245

Operation

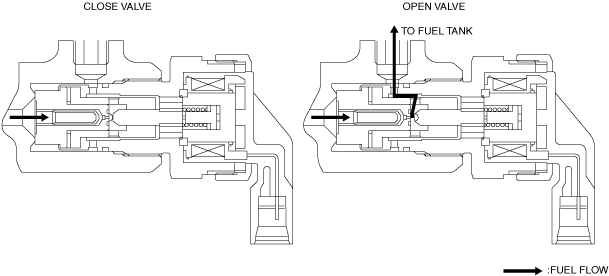

•  According to the control signal from the PCM, the coil is energized and the plunger is operated to open the fuel passage.
ac5wzn00002246

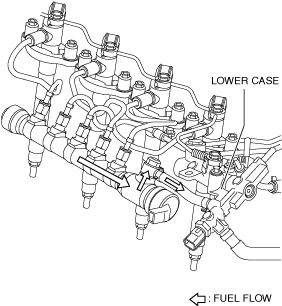

•  The fuel passage opens and the pressure in the common rail flows to the lower case side.
ac8wzn00000185

Fail-safe

DTC

Fail-safe
P009B:00
•  Limits the fuel pressure. (High pressure)
•  Limits the engine torque/limits the maximum engine speed.
•  Inhibits engine-stop by i-stop control.
P009C:00
P009D:00
P009F:00
