FUEL TANK [SKYACTIV-G 2.5]

id0114za104100


Purpose, Function

•  Store fuel safely and supply fuel to the engine.

Construction

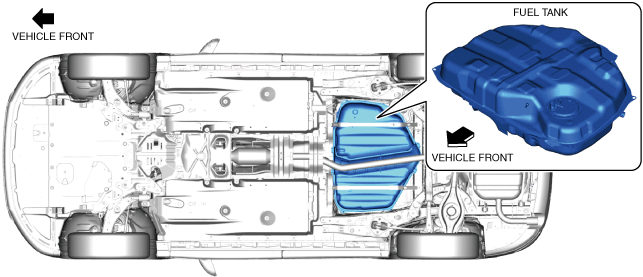

•  The fuel tank is installed below the rear seat.

2WD

ac8wzn00001032

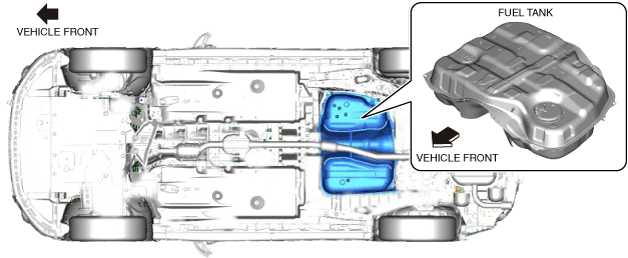

4WD

ac8wzn00001033
•  The fuel tank is made of steel.

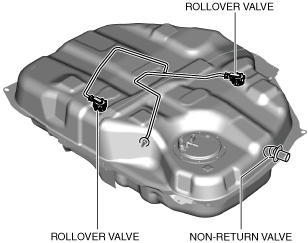

•  The following parts are integrated in the fuel tank.
―  Non-return valve
(See NON-RETURN VALVE [SKYACTIV-G 2.5].)
―  Rollover valve
(See ROLLOVER VALVE [SKYACTIV-G 2.5].)

2WD

ac8wzn00001034

4WD

ac8wzn00001035
