CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0116e1189700

1.  Remove the second-row seat (passenger-side). (See SECOND-ROW SEAT REMOVAL/INSTALLATION.)

2.  Remove the service hole cover.

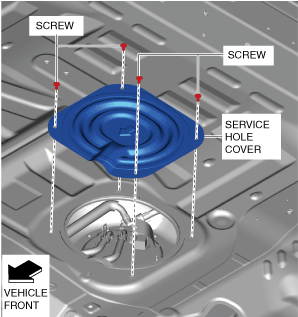

ac8wzw00002748

3.  Remove in the order shown in the figure.

4.  Install in the reverse order of removal.

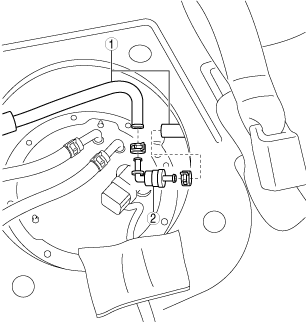

ac5jjw00003605

1	Evaporative hose
2	Check valve
