GENERATOR [SKYACTIV-D 2.2]

id0117h6104300


Purpose, Function

•  The generator operates by obtaining drive force from the engine via the drive belt and generates the required electricity for electronic devices.

Construction

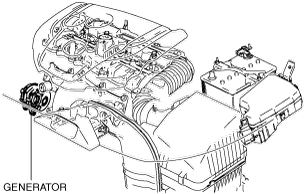

•  The generator is installed on the engine left front side.
ac5wzn00001989

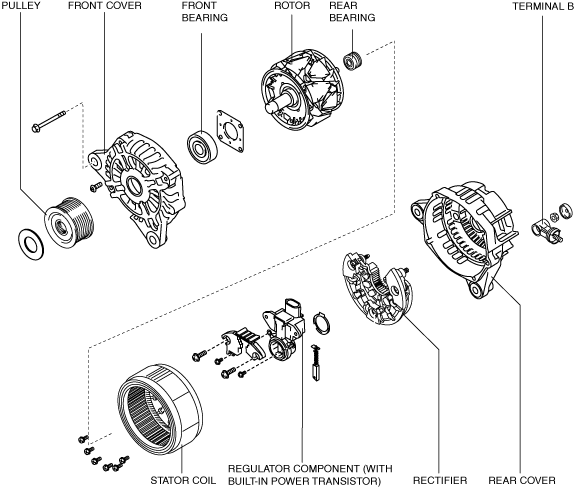

•  Two delta connection type stator coils have been adopted.
ac5wzn00001990
ac8wzn00000990

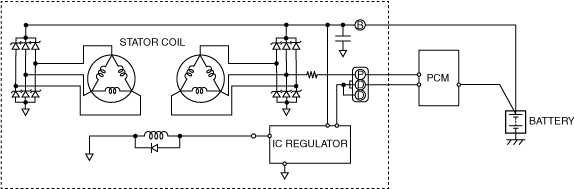

•   The two stator coils form the circuit having a phase difference, and magnetic pull, which operates between the rotor and stator coil by the phase difference, is theoretically eliminated. Due to this, electromagnetic vibration and generator operation noise (electromagnetic noise) have been reduced.
am3uun00001931

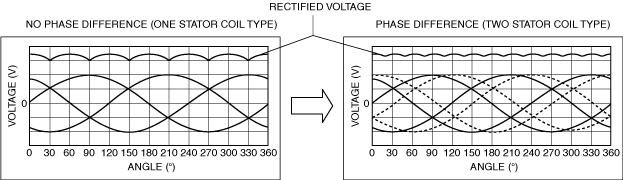

•  Pulsation occurring through voltage rectifying using two stator coils having a phase difference is minimized and stable voltage output is supplied.
am3uun00002198

Operation

•  For generator control details, refer to CONTROL SYSTEM. (See GENERATOR CONTROL [SKYACTIV-D 2.2].)

Fail-safe

DTC

Fail-safe
P2502:00
•  Inhibits engine-stop by i-stop control.
•  Generator output control inhibited.
P2503:00
•  Inhibits the i-stop control.
P2504:00
•  Inhibits engine-stop by i-stop control.
