CHARGING SYSTEM [SKYACTIV-G 2.5]

id0117h8102900

Outline

• Regulator-less generator (built-in power transistor) has been adopted.

• A generator using two delta connection type stator coils has been adopted.

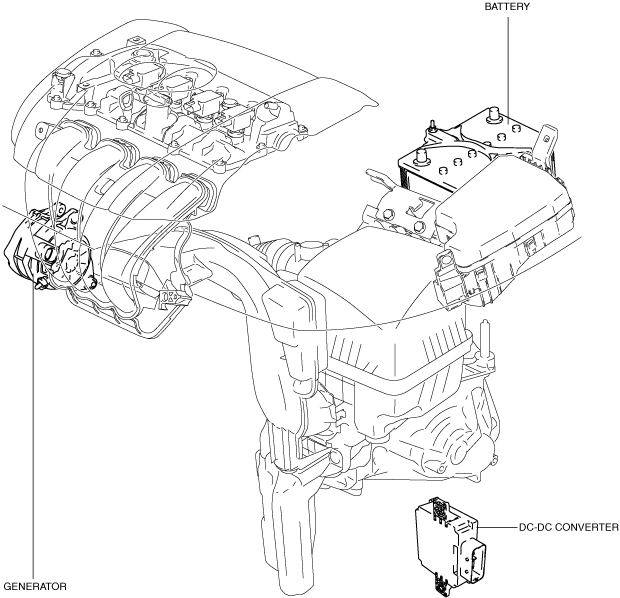

Structural View

ac5wzn00001984

Structure

• Consists of the following parts:

Battery	(See BATTERY [SKYACTIV-G 2.5].)
Generator	(See GENERATOR [SKYACTIV-G 2.5].)
DC-DC converter	(See DC-DC CONVERTER [SKYACTIV-G 2.5].)
Charging system warning indication/charging system warning light	(See CHARGING SYSTEM WARNING INDICATION/CHARGING SYSTEM WARNING LIGHT [SKYACTIV-G 2.5].)
