DC-DC CONVERTER CONTROL [SKYACTIV-G 2.5]

id0140g0004300

Outline

• Stability of the power supply to the cabin has been realized by preventing decreases in the power supply due to battery voltage decreases while the engine is restarted by the i-stop control.

• When the engine is restarted by the i-stop control, the PCM sends a battery voltage (DC-DC converter downstream voltage) boost request signal to the DC-DC converter.

Block Diagram

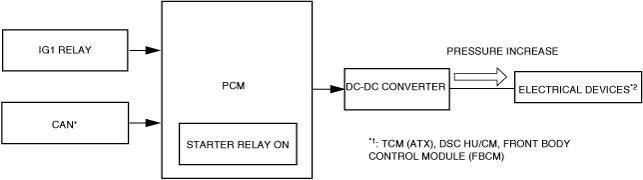

am6zzn00004809

*2 :For details on the vehicle's electrical devices, refer to the CHARGING SYSTEM. (See CHARGING SYSTEM WARNING INDICATION/CHARGING SYSTEM WARNING LIGHT [SKYACTIV-G 2.5].)

Operation

• When the engine is restarted by the i-stop control, the PCM sends a voltage boost request signal to the DC-DC converter so that the DC-DC converter downstream voltage is maintained at 11.5―12.5 V.

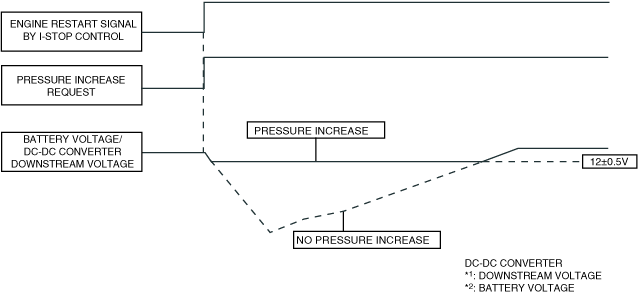

ac8wzn00001164
