ENGINE OIL TEMPERATURE SENSOR [SKYACTIV-G 2.5]

id0140g0256900

Purpose/Function

• Detects the engine oil temperature and sends it to the PCM as an engine oil temperature signal.

Construction

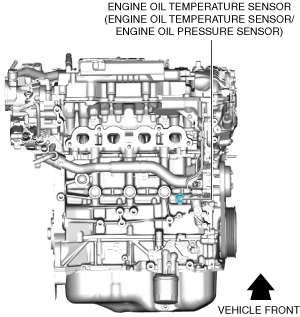

• Installed on the cylinder block.

ac5wzn00004471

• A thermistor has been adopted (as the detecting element) for detecting the engine oil temperature.

• The engine oil temperature sensor is integrated with the engine oil pressure sensor.

Operation

• Sends the signal, which fluctuates according to the engine oil temperature, to the PCM.

ac3wzn00000800

Engine oil temperature sensor characteristic

am2zzn00003690

Fail-safe

DTC No.

Fail-safe function

P117A:00

• Limits engine speed
