WATER FLOW CONTROL [SKYACTIV-G 2.5]
id0140g0300800
Outline
• The PCM adjusts the engine coolant control valve and supplies engine coolant to the appropriate engine coolant passage according to the changes in the engine coolant temperature.
• By blocking each water passage before the engine warms up, and suppressing heat radiation, the temperature of the internal wall of the cylinder is quickly increased to improve fuel economy.

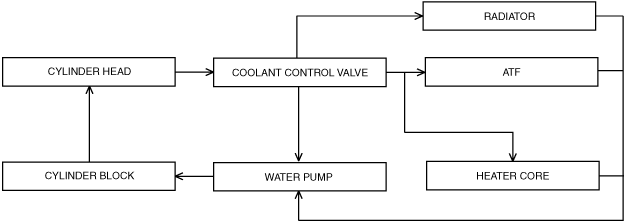

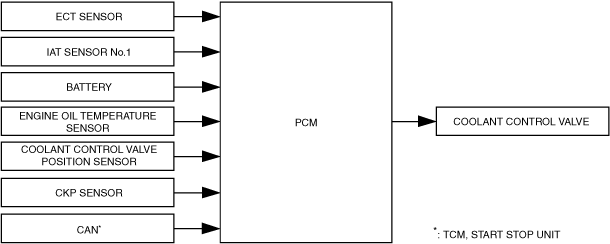

Block Diagram
Operation
Operation condition

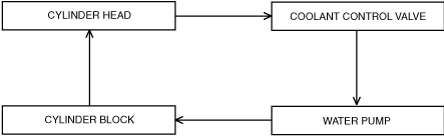

• Passage between coolant control valve and water pump
-
• Passage between coolant control valve and ATF, heater core
-
― Condition before engine warm-up
• Passage between coolant control valve and radiator
-
