CONTROL SYSTEM LOCATION INDEX [SKYACTIV-G 2.5]

id0140g0804100

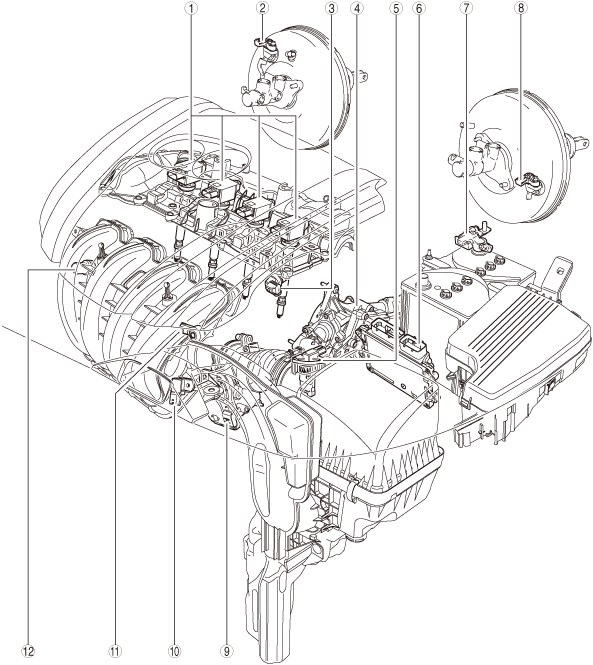

Engine Compartment

ac8wzw00003807

1	Ion sensor (See ION SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See ION SENSOR INSPECTION [SKYACTIV-G 2.5].)
2	Power brake unit vacuum sensor (R.H.D.) (See POWER BRAKE UNIT VACUUM SENSOR INSPECTION [SKYACTIV-G 2.5].)
3	Intake CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [SKYACTIV-G 2.5].)
4	Coolant control valve position sensor (See COOLANT CONTROL VALVE POSITION SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See COOLANT CONTROL VALVE POSITION SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
5	MAF sensor/IAT sensor No.1 (See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.1 REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See MASS AIR FLOW (MAF) SENSOR INSPECTION [SKYACTIV-G 2.5].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [SKYACTIV-G 2.5].)
6	PCM (BARO sensor) (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See PCM INSPECTION [SKYACTIV-G 2.5].) (See PCM CONFIGURATION (USING READ/WRITE FUNCTION) [SKYACTIV-G 2.5].) (See PCM CONFIGURATION (USING AS-BUILT DATA) [SKYACTIV-G 2.5].) (See BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION [SKYACTIV-G 2.5].)
7	Current sensor (See CURRENT SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See CURRENT SENSOR INSPECTION [SKYACTIV-G 2.5].)
8	Power brake unit vacuum sensor (L.H.D.) (See POWER BRAKE UNIT VACUUM SENSOR INSPECTION [SKYACTIV-G 2.5].)
9	TP sensor (See THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See THROTTLE POSITION (TP) SENSOR INSPECTION [SKYACTIV-G 2.5].)
10	MAP sensor/IAT sensor No.2 (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [SKYACTIV-G 2.5].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [SKYACTIV-G 2.5].)
11	KS (See KNOCK SENSOR (KS) REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See KNOCK SENSOR (KS) INSPECTION [SKYACTIV-G 2.5].)
12	Fuel pressure sensor (See FUEL PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See FUEL PRESSURE SENSOR INSPECTION [SKYACTIV-G 2.5].)

Except Engine Compartment

ac8wzw00003808

1	i-stop OFF switch (See i-stop OFF SWITCH REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See i-stop OFF SWITCH INSPECTION [SKYACTIV-G 2.5].)
2	APP sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [SKYACTIV-G 2.5].)
3	A/F sensor (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See AIR FUEL RATIO (A/F) SENSOR INSPECTION [SKYACTIV-G 2.5].)
4	Exhaust CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [SKYACTIV-G 2.5].)
5	ECT sensor No.2 (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [SKYACTIV-G 2.5].)
6	Engine oil temperature sensor/Engine oil pressure sensor (See ENGINE OIL TEMPERATURE SENSOR/ENGINE OIL PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See ENGINE OIL TEMPERATURE SENSOR INSPECTION [SKYACTIV-G 2.5].) (See ENGINE OIL PRESSURE SENSOR INSPECTION [SKYACTIV-G 2.5].)
7	ECT sensor No.1 (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [SKYACTIV-G 2.5].)
8	CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [SKYACTIV-G 2.5].)
9	Engine oil level sensor (With engine oil level sensor) (See ENGINE OIL LEVEL SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See ENGINE OIL LEVEL SENSOR INSPECTION [SKYACTIV-G 2.5].)
10	HO2S (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See HEATED OXYGEN SENSOR (HO2S) INSPECTION [SKYACTIV-G 2.5].)
