i-stop OFF SWITCH [SKYACTIV-D 2.2]
id0140z7008000
Purpose/Function
• The driver can turn the i-stop control on/off using the i-stop OFF switch.
Construction

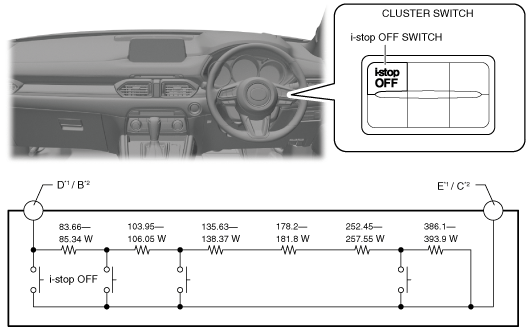

• Installed to the switch panel.
*1 :VIN: JM0 KG2W2A*# 100001—199999
*2 :VIN: JM0 KG2W2A*# 200001
Operation

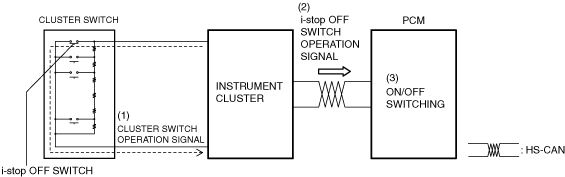

1. When the i-stop OFF switch is operated, a cluster switch operation signal is sent (1) to the instrument cluster.
2. The instrument cluster sends (2) the i-stop OFF switch operation signal to the PCM based on the switch operation signal (detected voltage).
3. When the PCM receives the i-stop OFF switch operation signal from the instrument cluster, it switches the i-stop control on/off (3).
Fail-safe
• Function not equipped.
