FRONT LOWER ARM REMOVAL/INSTALLATION

id021300800600

1.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

2.  Remove front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

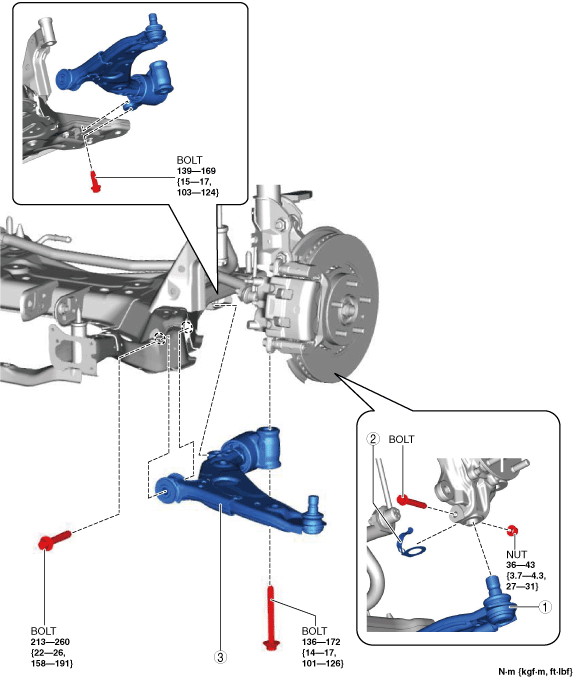

3.  Remove in the order shown in the figure.

4.  Install in the reverse order of removal. (See Suspension Links Installation Note.)

5.  If the front lower arm is replaced, inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT.)

ac8wzw00001900

1	Front lower arm ball joint (See Front Lower Arm Ball Joint Installation Note.)
2	Spacer
3	Front lower arm

Suspension Links Installation Note

1.  When installing the joint section with a rubber bushing, perform the following steps.

(1)  Temporarily tighten the bolt with the vehicle lifted up.

(2)  Lower the vehicle to the ground and tighten the bolt to the specified torque.

Front Lower Arm Ball Joint Installation Note

1.  Install a spacer to the steering knuckle before installing the front lower arm ball joint.

ac8wzw00001901

2.  Insert the bolt from the front of the vehicle and tighten the nut to the specified torque.
