REAR STABILIZER REMOVAL [2WD]

id0214008041a1

1.  Remove the rear stabilizer control link.

ac8wzw00001966

2.  Remove in the order shown in the figure.

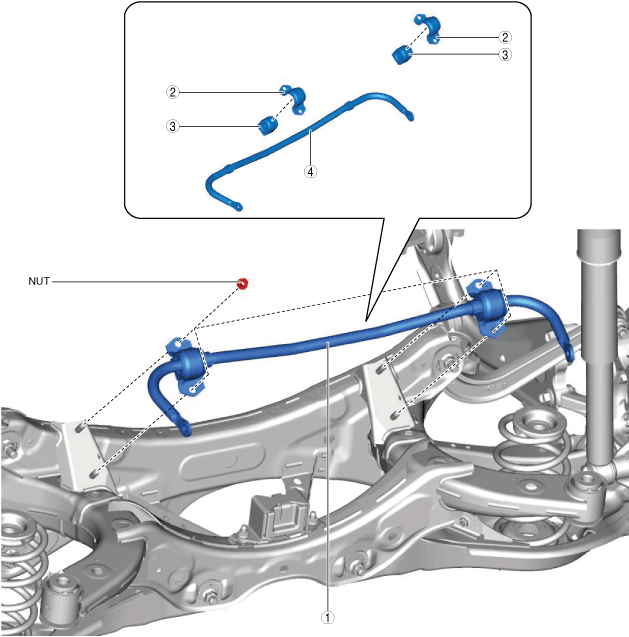

Vehicle Identification Number (VIN): JM0*100001-200000

ac8wzw00001967

1	Rear stabilizer component (See Rear Stabilizer Component Removal Note.)
2	Rear stabilizer bracket (See Rear Stabilizer Bracket Removal Note.)
3	Rear stabilizer bushing
4	Rear stabilizer

Vehicle Identification Number (VIN): JM0*200001-, PP1*

ac8wzw00003263

1	Rear stabilizer component (See Rear Stabilizer Component Removal Note.)
2	Rear stabilizer bracket (See Rear Stabilizer Bracket Removal Note.)
3	Rear stabilizer

Rear Stabilizer Component Removal Note

1.  Remove the rear stabilizer component as shown in the figure.

ac8wzw00001968

Rear Stabilizer Bracket Removal Note

1.  Secure the rear stabilizer bracket flange in a vise.

ac8wzw00001969

2.  Remove the rear stabilizer bracket.

Caution

•  The rear stabilizer bracket may deform if it is removed using a vise. When removing the rear stabilizer bracket using a vise, secure the front stabilizer bracket flange in the vise as shown in the figure, then remove it.
