REAR SHOCK ABSORBER DISASSEMBLY/ASSEMBLY
id021400900000
Special service tool (SST)
49 G027 006
Installer
|
![]() |
49 H027 002
Bearing remover
|
![]() |
Replacement part
Piston rod nut
Quantity: 1
Location of use: Rear shock absorber
|
Oil and Chemical Type
Rubber grease
Type: NIPPON GREASE RUBBER GREASE
|
1. Remove the rear shock absorber. (See REAR SHOCK ABSORBER REMOVAL/INSTALLATION.)

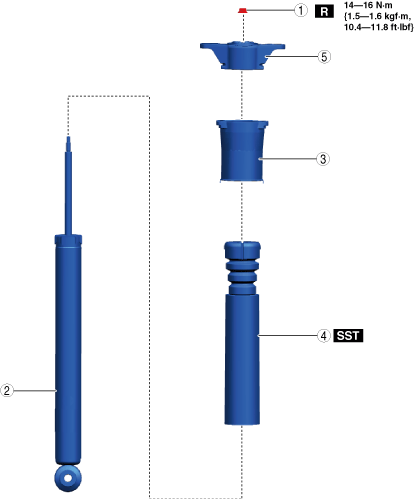

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
ac5uuw00011061
|
1
|
Piston rod nut
(See Piston Rod Nut Removal Note.)
|
2
|
Rear shock absorber
|
3
|
Dust boot
(See Dust Boot Installation Note.)
|
4
|
Bump stopper
|
5
|
Mounting rubber
|
Piston Rod Nut Removal Note
1. Remove the piston rod nut using an offset box-end wrench and pliers.
ac5uuw00011062
|
Bump Stopper, Mounting Rubber Assembly Note
1. Wipe off grease on the bump stopper component using a cloth.
2. Apply rubber grease to the inside of the bump stopper component.
ac5uuw00011063
|

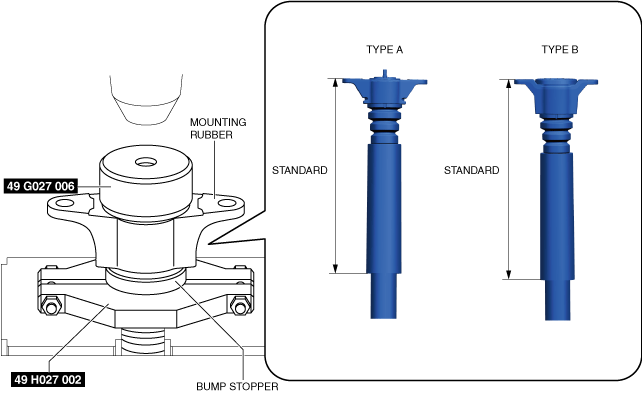

3. Assemble the bump stopper component and the mounting rubber using the SSTs and a press.
ac5uuw00011064
|
4. Verify that the assembly position of the bump stopper and the mounting rubber is within the standard.
Dust Boot Installation Note
1. Assemble the dust boot to position A shown in the figure.
ac5uuw00011065
|
Piston Rod Nut Installation Note
1. Install the offset box-end wrench to the torque wrench as shown in the figure, set it on the piston rod nut, and measure dimensions A and L shown in the figure.
ac8wzw00004286
|

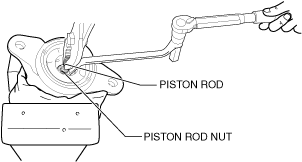

2. Tighten the piston rod nut after calculating the tightening torque using the following formula.
ac8wzw00004287
|
