DRIVELINE/AXLE
id030000100400
Features
• Unit-design, double angular ball bearings with low rotational resistance have been adopted for the front and rear axles.
• Unit bearings that require no preload adjustment have been adopted for the front and rear wheels.
• The following parts have been adopted to reduce vibration and noise:
-
― Bell-shaped constant velocity joint has been adopted for the wheel-side joint of the front drive shaft.
― A tripod-shaped constant velocity joint has been adopted for the differential-side joint of the front drive shaft.
― For 4WD vehicles, bell-shaped constant velocity joint has been adopted for the wheel-side joint of the rear drive shaft.
― For 4WD vehicles, a tripod-shaped joint has been adopted for the differential-side constant velocity joint.
― For 4WD vehicles, 3-part, 2-joint type propeller shaft with middle shaft bearing has been adopted.
• For 4WD vehicles, the following parts have been adopted to improve off-road mobility and handling stability:
-
― Electronic 4WD control system which automatically and optimally controls drive torque distribution for the front and rear wheels.
― Rear differential which integrates the coupling component to reduce size and weight.
• Ball bearings/tandem ball bearings with low rolling resistance have been adopted for the inside of the rear differential and transfer.
Specifications
2WD
|
Item
|
Specification
|
|
Front axle
|
|
Bearing type
|
Angular ball bearing
|
|
Rear axle
|
|
Bearing type
|
Angular ball bearing
|
|
Front drive shaft
|
|
Front drive shaft joint type
|
Wheel side
|
Bell joint
|
|
Differential side
|
Tripod joint
|
|
Front drive shaft diameter
|
(mm {in})
|
SKYACTIV-G 2.5: LH: 25.5 {1.00} RH: 28.0 {1.10}
SKYACTIV-D 2.2: LH: 27.0 {1.06} RH: 30.0 {1.18}
|
4WD
|
Item
|
Specification
|
|
Front axle
|
|
Bearing type
|
Angular ball bearing
|
|
Rear axle
|
|
Bearing type
|
Angular ball bearing
|
|
Front drive shaft
|
|
Front drive shaft joint type
|
Wheel side
|
Bell joint
|
|
Differential side
|
Tripod joint
|
|
Front drive shaft diameter
|
(mm {in})
|
SKYACTIV-G 2.5: LH: 25.5 {1.00} RH: 28.0 {1.10}
SKYACTIV-D 2.2: LH: 27.0 {1.06} RH: 30.0 {1.18}
|
|
Rear drive shaft
|
|
Rear drive shaft joint type
|
Wheel side
|
Bell joint
|
|
Differential side
|
Tripod joint
|
|
Rear drive shaft diameter
|
(mm {in})
|
22.0 {0.866}
|
|
Rear differential
|
|
Rear and front wheel torque distribution unit
|
Electronic control coupling
|
|
Reduction gear
|
Hypoid gear
|
|
Differential gear
|
Straight bevel gear
|
|
Ring gear size
|
(mm {in})
|
140 {5.51}
|
|
Final gear ratio
|
2.928
|
|
Gears:
Number of teeth
|
Drive pinion
|
14
|
|
Ring gear
|
41
|
|
Differential oil
|
Type
|
Mazda Long Life Hypoid Gear Oil SG1
|
|
Oil capacity
(approx. quantity)
|
(L {US qt, lmp qt})
|
0.35 {0.37, 0.31}
|
|

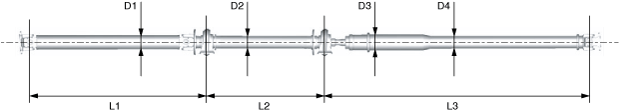

Propeller shaft
|
|
Length
|
(mm {in})
|
L1
|
731.5 {28.80}
|
|
L2
|
487 {19.2}
|
|
L3
|
1097.5 {43.209}
|
|
Outer diameter
|
(mm {in})
|
D1
|
57 {2.2}
|
|
D2
|
50.8 {2.00}
|
|
D3
|
65 {2.6}
|
|
D4
|
50.8 {2.00}
|
 |
|
Joint type
|
Constant velocity joint
and cross-shaped joint
|
|
Constant velocity joint
|
Double offset joint
|
|
Transfer
|
|
Transfer oil
|
Type
|
Mazda Long Life Hypoid Gear Oil SG1
|
|
Oil capacity
(approx. quantity)
|
(L {US qt, Imp qt})
|
0.45 {0.48, 0.40}
|
