FRONT WHEEL HUB BOLT REPLACEMENT

id031100800200

Special service tool (SST)

49 T028 3A0   Ball joint puller set

Replacement part

1.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

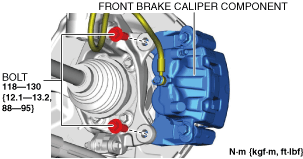

2.  Remove the front brake caliper component installation bolts.

ac8wzw00001998

3.  Remove the front brake caliper component and suspend it in a place out of the way using a cable.

ac8wzw00001999

4.  Remove the front disc plate.

ac8wzw00002000

5.  Remove the front wheel hub bolt using the SST as shown in the figure.

ac5jjw00003203

6.  Pass the new front wheel hub bolt through the wheel hub.

7.  Install the front wheel hub bolt by placing an appropriate-sized washer on the wheel hub and tightening the wheel nut as shown in the figure.

am3uuw00006182
