TRANSFER


id031600140100


Purpose, Function

•  A transfer with simple, one-axis construction has been adopted for size and weight reduction.
•  A thinner transfer case has been adopted for weight reduction.
•  By changing the bearings in the transfer from taper roller bearings to ball bearings/tandem ball bearings, rolling resistance is reduced and fuel economy is improved.

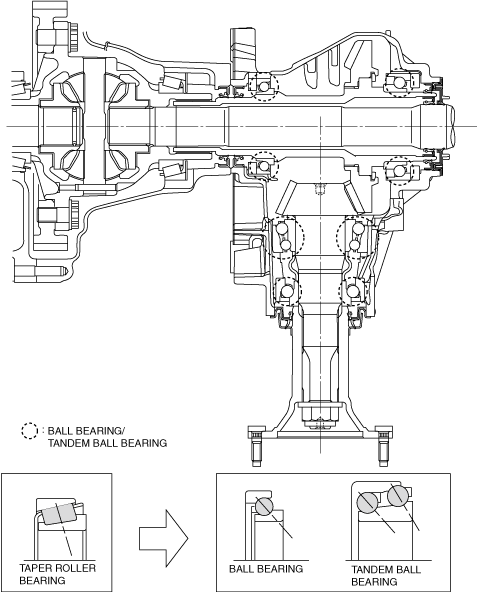

Cross-sectional View

ac5uun00002852
